SDO HMI 2014-10-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.19 | 0.00 | 10.95 | 13.27 | 58.95 | -53.77 | 78.19 | 0.8036 | -120.8 | -138.6 | |
|
previous
or next observation for the same group /

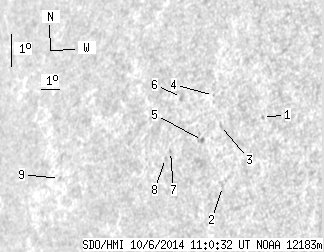

back to the solar disc SDO HMI 2014-10-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 1.01 | 14.08 | 62.48 | -50.24 | 76.99 | 0.7676 | -558.0 | -421.1 | |
| 0.00 | 1.32 | 0.00 | 1.04 | 11.87 | 61.14 | -51.58 | 79.93 | 0.7810 | -300.0 | -304.5 | |
| 0.00 | 1.32 | 0.00 | 1.06 | 13.67 | 60.52 | -52.20 | 77.65 | 0.7882 | -557.0 | -479.1 | |
| 0.00 | 0.79 | 0.00 | 0.64 | 14.53 | 59.88 | -52.84 | 76.59 | 0.7953 | -420.0 | -376.0 | |
| 0.00 | 2.20 | 0.00 | 1.79 | 13.15 | 59.77 | -52.95 | 78.35 | 0.7958 | -375.0 | -256.3 | |
| 0.00 | 3.16 | 0.00 | 2.67 | 14.33 | 58.27 | -54.45 | 76.94 | 0.8114 | -322.0 | -252.1 | |
| 0.00 | 0.79 | 0.00 | 0.67 | 12.68 | 58.24 | -54.48 | 78.98 | 0.8112 | 535.0 | 505.2 | |
| 0.00 | 1.32 | 0.00 | 1.12 | 12.45 | 58.05 | -54.68 | 79.27 | 0.8131 | 396.0 | 311.1 | |
| 0.00 | 0.97 | 0.00 | 0.95 | 11.31 | 52.33 | -60.40 | 80.64 | 0.8661 | 514.0 | 444.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
