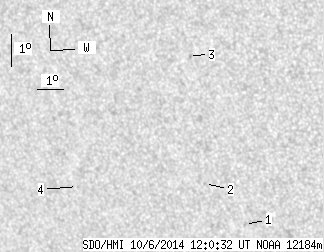

SDO HMI 2014-10-06 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.55 | 0.00 | 1.61 | -10.18 | 77.32 | -34.86 | 115.36 | 0.6247 | 312.0 | 272.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.60 | -11.38 | 79.23 | -32.94 | 118.40 | 0.6083 | 637.0 | 427.5 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -10.18 | 77.92 | -34.26 | 115.71 | 0.6172 | 622.0 | 515.1 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -6.23 | 77.73 | -34.45 | 109.55 | 0.5990 | 453.0 | 537.5 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -10.61 | 73.02 | -39.16 | 113.38 | 0.6785 | -464.0 | -453.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
