SDO HMI 2014-10-06 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.85 | 20.92 | 6.12 | 18.52 | -12.88 | 59.26 | -52.91 | 110.28 | 0.8310 | 138.9 | 183.6 | |
|
previous
or next observation for the same group /

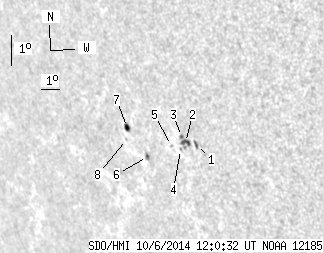

back to the solar disc SDO HMI 2014-10-06 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 2.33 | -12.82 | 60.82 | -51.35 | 110.76 | 0.8166 | 535.0 | 464.2 | |
| 2.72 | 8.26 | 2.35 | 7.14 | -12.81 | 60.27 | -51.90 | 110.55 | 0.8217 | 633.9 | 489.8 | |
| 0.61 | -2.00 | 0.53 | -2.00 | -12.63 | 60.13 | -52.05 | 110.30 | 0.8225 | 454.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.07 | -13.06 | 59.95 | -52.22 | 110.73 | 0.8254 | 421.0 | 357.0 | |
| 0.00 | 0.97 | 0.00 | 0.85 | -12.97 | 59.52 | -52.65 | 110.48 | 0.8291 | 309.0 | 270.6 | |
| 0.97 | 2.99 | 0.88 | 2.73 | -13.45 | 58.12 | -54.05 | 110.54 | 0.8430 | -606.4 | -527.7 | |
| 2.55 | 4.22 | 2.36 | 3.91 | -12.61 | 57.33 | -54.84 | 109.33 | 0.8476 | -359.1 | -272.1 | |
| 0.00 | 0.53 | 0.00 | 0.49 | -13.00 | 57.15 | -55.03 | 109.72 | 0.8502 | -209.0 | -209.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
