SDO HMI 2014-10-06 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 20.38 | 5.05 | 17.84 | -12.96 | 59.28 | -52.34 | 110.58 | 0.8259 | 22.9 | 270.3 | |
|
previous
or next observation for the same group /

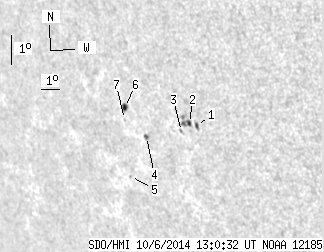

back to the solar disc SDO HMI 2014-10-06 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 2.55 | 0.96 | 2.14 | -12.83 | 60.86 | -50.76 | 110.99 | 0.8111 | 571.2 | 443.5 | |
| 1.05 | 8.52 | 0.89 | 7.25 | -12.80 | 60.53 | -51.09 | 110.83 | 0.8141 | 547.2 | 537.4 | |
| 0.00 | 1.32 | 0.00 | 1.13 | -13.09 | 60.05 | -51.58 | 111.00 | 0.8195 | 339.0 | 301.8 | |
| 0.97 | 2.37 | 0.87 | 2.14 | -13.42 | 58.16 | -53.46 | 110.72 | 0.8377 | -580.9 | -499.4 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -14.82 | 56.82 | -54.80 | 111.84 | 0.8531 | 465.0 | 448.1 | |
| 2.55 | 3.95 | 2.33 | 3.62 | -12.59 | 57.27 | -54.35 | 109.47 | 0.8433 | -411.3 | -322.4 | |
| 0.00 | 0.79 | 0.00 | 0.73 | -12.98 | 57.15 | -54.48 | 109.87 | 0.8454 | -191.0 | -206.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
