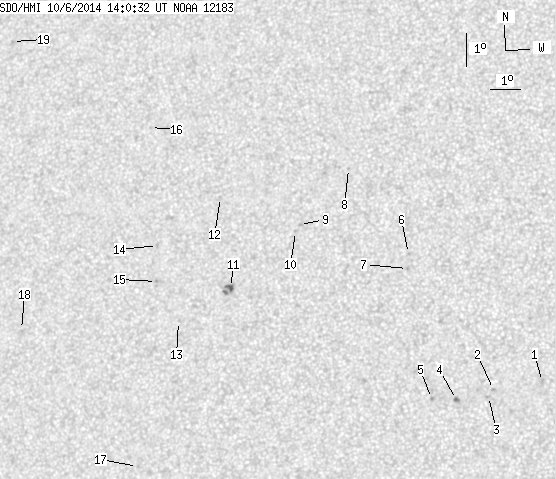

SDO HMI 2014-10-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.19 | 30.63 | 1.18 | 16.29 | 13.22 | 91.56 | -19.52 | 69.00 | 0.3498 | 22.1 | 81.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.11 | 0.00 | 1.07 | 10.97 | 99.59 | -11.48 | 67.42 | 0.2127 | -839.0 | -623.8 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 10.69 | 98.07 | -13.00 | 70.77 | 0.2352 | -903.0 | -729.9 | |
| 0.00 | 1.67 | 0.00 | 0.85 | 10.48 | 97.92 | -13.15 | 71.82 | 0.2365 | -791.0 | -635.3 | |
| 0.00 | 2.46 | 0.00 | 1.26 | 10.36 | 96.93 | -14.15 | 73.35 | 0.2521 | -963.0 | -849.5 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 10.37 | 96.14 | -14.94 | 74.05 | 0.2649 | -864.0 | -710.2 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 14.72 | 95.14 | -15.93 | 60.81 | 0.3054 | -710.0 | -476.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 14.26 | 95.14 | -15.93 | 62.16 | 0.3021 | -970.0 | -801.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 17.24 | 92.97 | -18.11 | 56.99 | 0.3555 | 837.0 | 661.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 15.48 | 91.53 | -19.55 | 63.11 | 0.3632 | 695.0 | 591.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 15.26 | 91.41 | -19.66 | 63.77 | 0.3634 | 758.0 | 595.5 | |
| 2.19 | 8.43 | 1.18 | 4.52 | 13.49 | 89.43 | -21.64 | 69.98 | 0.3833 | 1068.0 | 847.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 16.20 | 88.81 | -22.26 | 63.96 | 0.4066 | 682.0 | 543.8 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 12.40 | 87.81 | -23.27 | 73.69 | 0.4037 | 572.0 | 532.0 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 14.66 | 86.86 | -24.21 | 68.95 | 0.4269 | 777.0 | 685.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 13.57 | 86.95 | -24.13 | 71.38 | 0.4210 | 828.0 | 650.8 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 18.23 | 86.14 | -24.93 | 61.83 | 0.4561 | 643.0 | 559.6 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 7.99 | 86.78 | -24.29 | 84.79 | 0.4108 | -671.0 | -434.4 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 11.91 | 82.50 | -28.58 | 76.91 | 0.4825 | -622.0 | -635.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 20.62 | 80.74 | -30.33 | 61.23 | 0.5413 | 704.0 | 642.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
