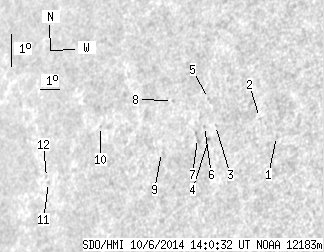

SDO HMI 2014-10-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.59 | 0.00 | 9.34 | 13.12 | 58.62 | -52.45 | 78.28 | 0.7895 | -153.2 | -145.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.64 | 13.61 | 63.44 | -47.64 | 77.40 | 0.7382 | -543.0 | -403.7 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 14.12 | 62.51 | -48.57 | 76.80 | 0.7491 | -423.0 | -452.8 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 13.71 | 60.52 | -50.55 | 77.49 | 0.7707 | -494.0 | -451.8 | |
| 0.00 | 1.32 | 0.00 | 1.02 | 13.26 | 60.31 | -50.76 | 78.09 | 0.7728 | -476.0 | -365.9 | |
| 0.00 | 1.05 | 0.00 | 0.83 | 14.49 | 59.94 | -51.14 | 76.53 | 0.7775 | -449.0 | -378.2 | |
| 0.00 | 0.79 | 0.00 | 0.62 | 13.64 | 60.01 | -51.07 | 77.62 | 0.7762 | -438.0 | -412.9 | |
| 0.00 | 3.34 | 0.00 | 2.62 | 13.25 | 59.77 | -51.30 | 78.13 | 0.7785 | -328.0 | -262.9 | |
| 0.00 | 0.44 | 0.00 | 0.36 | 14.27 | 58.19 | -52.89 | 76.92 | 0.7956 | -467.0 | -432.8 | |
| 0.00 | 0.70 | 0.00 | 0.57 | 12.68 | 58.13 | -52.95 | 78.93 | 0.7956 | 584.0 | 551.5 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 13.17 | 54.71 | -56.37 | 78.43 | 0.8297 | 327.0 | 264.7 | |
| 0.00 | 0.97 | 0.00 | 0.91 | 11.24 | 52.37 | -58.71 | 80.73 | 0.8513 | 484.0 | 426.5 | |
| 0.00 | 0.79 | 0.00 | 0.74 | 11.38 | 52.20 | -58.87 | 80.57 | 0.8527 | 385.0 | 380.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
