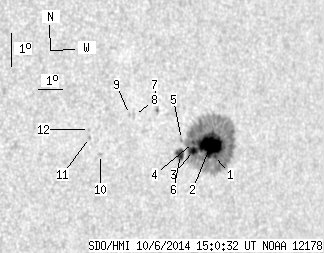

SDO HMI 2014-10-06 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.04 | 234.21 | 31.87 | 166.06 | -1.65 | 155.43 | 44.91 | 261.31 | 0.7162 | 881.0 | 265.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 216.57 | 0.63 | 154.01 | -1.97 | 155.90 | 45.37 | 260.98 | 0.7225 | 635.7 | 263.3 | |
| 31.69 | -1.00 | 22.53 | -1.00 | -1.66 | 155.71 | 45.19 | 261.37 | 0.7196 | 1080.1 | 999999 | |
| 5.27 | -1.00 | 3.70 | -1.00 | -1.75 | 155.00 | 44.47 | 261.05 | 0.7112 | 1025.5 | 999999 | |
| 1.23 | -1.00 | 0.86 | -1.00 | -1.51 | 154.99 | 44.46 | 261.39 | 0.7105 | 985.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.98 | -1.38 | 154.48 | 43.96 | 261.44 | 0.7041 | 779.0 | 708.2 | |
| 5.97 | 7.81 | 4.15 | 5.44 | -1.83 | 154.45 | 43.93 | 260.80 | 0.7048 | 902.3 | 695.0 | |
| 0.00 | 2.11 | 0.00 | 1.44 | -0.39 | 153.47 | 42.95 | 262.58 | 0.6894 | 708.0 | 611.5 | |
| 0.00 | 1.84 | 0.00 | 1.24 | -0.50 | 152.54 | 42.01 | 262.18 | 0.6779 | 735.0 | 545.7 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -0.45 | 152.33 | 41.81 | 262.20 | 0.6752 | 683.0 | 630.7 | |
| 0.00 | 1.58 | 0.00 | 1.04 | -1.58 | 151.19 | 40.67 | 260.22 | 0.6633 | -574.0 | -445.9 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -1.03 | 150.75 | 40.22 | 260.91 | 0.6562 | -522.0 | -505.0 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -0.79 | 150.74 | 40.22 | 261.27 | 0.6555 | -686.0 | -596.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
