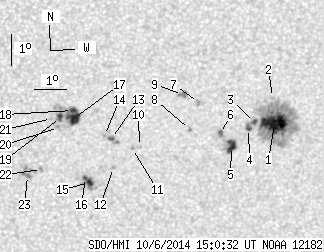

SDO HMI 2014-10-06 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.29 | 235.79 | 34.05 | 126.93 | -13.96 | 120.98 | 10.45 | 206.66 | 0.3927 | 311.2 | 164.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.55 | 136.33 | 16.54 | 73.80 | -13.81 | 123.10 | 12.57 | 211.62 | 0.4048 | 1207.6 | 403.1 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -12.97 | 122.99 | 12.46 | 212.54 | 0.3927 | 570.0 | 451.2 | |
| 1.49 | -1.00 | 0.81 | -1.00 | -13.76 | 122.46 | 11.94 | 210.38 | 0.3990 | 1140.5 | 999999 | |
| 1.84 | -1.00 | 1.00 | -1.00 | -13.94 | 122.28 | 11.76 | 209.76 | 0.4001 | 948.4 | 999999 | |
| 7.55 | 14.84 | 4.08 | 8.02 | -14.51 | 121.77 | 11.25 | 208.00 | 0.4041 | 1005.4 | 658.6 | |
| 0.00 | 3.07 | 0.00 | 1.66 | -14.08 | 121.41 | 10.88 | 207.72 | 0.3953 | 1091.0 | 914.6 | |
| 0.00 | 2.72 | 0.00 | 1.45 | -13.08 | 120.67 | 10.15 | 207.32 | 0.3756 | 913.0 | 731.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -13.93 | 120.43 | 9.90 | 205.73 | 0.3861 | 752.0 | 796.0 | |
| 0.00 | 4.74 | 0.00 | 2.52 | -12.81 | 120.16 | 9.64 | 206.46 | 0.3680 | 1089.0 | 899.9 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -14.45 | 118.88 | 8.36 | 201.62 | 0.3837 | -366.0 | -524.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.51 | 118.66 | 8.14 | 201.05 | 0.3834 | -849.0 | -718.1 | |
| 0.00 | 2.02 | 0.00 | 1.09 | -15.11 | 118.09 | 7.57 | 199.15 | 0.3893 | -874.0 | -685.6 | |
| 0.97 | 5.09 | 0.52 | 2.72 | -14.17 | 118.00 | 7.47 | 199.76 | 0.3746 | 1050.9 | 771.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.07 | 117.78 | 7.25 | 199.31 | 0.3719 | 885.0 | 704.3 | |
| 2.98 | 12.03 | 1.61 | 6.47 | -15.58 | 117.36 | 6.83 | 197.03 | 0.3928 | -1061.4 | -743.4 | |
| 1.14 | -15.00 | 0.61 | -15.00 | -15.42 | 117.23 | 6.70 | 196.85 | 0.3897 | -1138.4 | 999999 | |
| 10.80 | 35.03 | 5.72 | 18.55 | -13.52 | 116.80 | 6.27 | 197.33 | 0.3582 | -1032.8 | -793.8 | |
| 2.90 | -17.00 | 1.53 | -17.00 | -13.26 | 116.76 | 6.24 | 197.45 | 0.3541 | -1153.9 | 999999 | |
| 2.72 | -17.00 | 1.44 | -17.00 | -13.48 | 116.39 | 5.87 | 196.31 | 0.3558 | -1127.6 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -13.80 | 116.34 | 5.82 | 195.91 | 0.3605 | -793.0 | -662.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.51 | 116.12 | 5.59 | 195.55 | 0.3550 | -709.0 | -496.6 | |
| 0.00 | 2.19 | 0.00 | 1.17 | -15.14 | 115.84 | 5.32 | 193.70 | 0.3795 | -867.0 | -727.2 | |
| 0.35 | 8.60 | 0.19 | 4.60 | -15.33 | 115.41 | 4.89 | 192.51 | 0.3809 | -837.2 | -770.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
