SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 37.21 | 0.47 | 19.44 | 13.35 | 93.41 | -16.56 | 65.88 | 0.3050 | -158.5 | -71.9 | |
|
previous
or next observation for the same group /

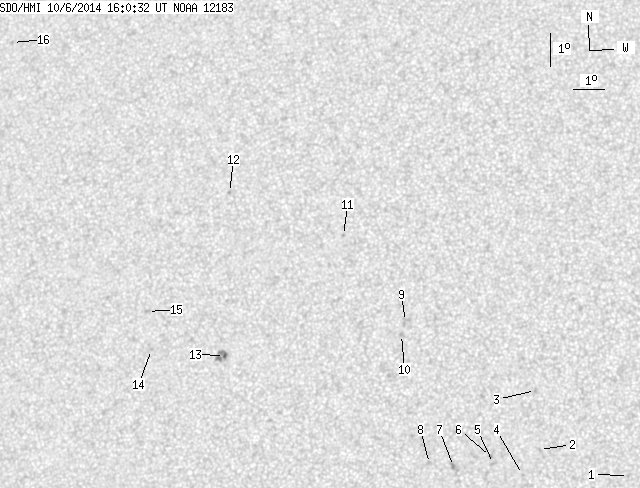

back to the solar disc SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 10.16 | 102.41 | -7.56 | 62.99 | 0.1461 | -831.0 | -629.8 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 10.90 | 99.65 | -10.33 | 65.65 | 0.1941 | -828.0 | -574.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.67 | 99.46 | -10.52 | 58.18 | 0.2106 | -848.0 | -722.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 10.14 | 99.14 | -10.83 | 70.19 | 0.1975 | -797.0 | -626.6 | |
| 0.00 | 2.46 | 0.00 | 1.25 | 10.45 | 98.23 | -11.74 | 70.11 | 0.2138 | -853.0 | -550.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 10.66 | 98.13 | -11.84 | 69.34 | 0.2165 | -934.0 | -728.2 | |
| 0.00 | 3.95 | 0.00 | 2.01 | 10.33 | 96.99 | -12.98 | 72.23 | 0.2331 | -1025.0 | -772.6 | |
| 0.00 | 2.19 | 0.00 | 1.12 | 10.40 | 96.24 | -13.74 | 72.77 | 0.2456 | -705.0 | -530.6 | |
| 0.00 | 4.92 | 0.00 | 2.54 | 14.66 | 95.24 | -14.73 | 59.20 | 0.2877 | -436.0 | -620.4 | |
| 0.00 | 2.81 | 0.00 | 1.45 | 14.26 | 95.14 | -14.83 | 60.59 | 0.2861 | -892.0 | -680.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 17.21 | 93.03 | -16.95 | 55.45 | 0.3395 | 881.0 | 688.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 18.40 | 89.10 | -20.87 | 57.63 | 0.4019 | 828.0 | 654.4 | |
| 0.88 | 8.60 | 0.47 | 4.58 | 13.45 | 89.47 | -20.51 | 69.26 | 0.3659 | 1136.4 | 898.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 13.53 | 87.04 | -22.94 | 70.76 | 0.4030 | 761.0 | 630.5 | |
| 0.00 | 2.02 | 0.00 | 1.10 | 14.67 | 86.78 | -23.19 | 68.24 | 0.4120 | 763.0 | 651.3 | |
| 0.00 | 1.40 | 0.00 | 0.83 | 22.67 | 80.67 | -29.30 | 57.03 | 0.5404 | 635.0 | 476.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
