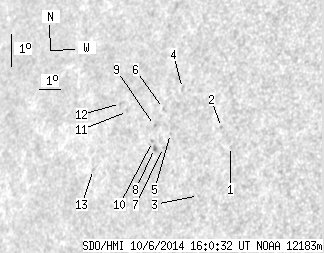

SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 13.34 | 0.34 | 10.22 | 13.65 | 60.00 | -49.98 | 77.53 | 0.7642 | -363.2 | -282.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.38 | 13.57 | 63.36 | -46.61 | 77.36 | 0.7263 | -495.0 | -448.3 | |
| 0.00 | 1.14 | 0.00 | 0.83 | 14.11 | 62.81 | -47.16 | 76.68 | 0.7331 | -633.0 | -573.5 | |
| 0.00 | 0.70 | 0.00 | 0.51 | 12.00 | 62.29 | -47.68 | 79.60 | 0.7377 | -295.0 | -280.4 | |
| 0.00 | 1.32 | 0.00 | 1.00 | 15.13 | 60.69 | -49.28 | 75.53 | 0.7579 | -506.0 | -396.6 | |
| 0.00 | 0.70 | 0.00 | 0.53 | 13.74 | 60.54 | -49.44 | 77.37 | 0.7585 | -499.0 | -446.9 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 14.46 | 59.99 | -49.99 | 76.47 | 0.7651 | -451.0 | -398.6 | |
| 0.00 | 0.79 | 0.00 | 0.60 | 13.30 | 60.33 | -49.65 | 77.98 | 0.7606 | -537.0 | -447.7 | |
| 0.44 | 2.28 | 0.34 | 1.75 | 13.23 | 59.91 | -50.06 | 78.09 | 0.7651 | -462.4 | -349.9 | |
| 0.00 | 1.14 | 0.00 | 0.88 | 13.92 | 59.72 | -50.26 | 77.20 | 0.7677 | -440.0 | -346.4 | |
| 0.00 | 1.14 | 0.00 | 0.88 | 13.43 | 59.76 | -50.21 | 77.83 | 0.7669 | -279.0 | -209.9 | |
| 0.00 | 0.44 | 0.00 | 0.35 | 14.22 | 58.29 | -51.68 | 76.91 | 0.7831 | -239.0 | -223.6 | |
| 0.00 | 0.88 | 0.00 | 0.70 | 14.43 | 57.87 | -52.11 | 76.67 | 0.7877 | -382.0 | -355.1 | |
| 0.00 | 1.40 | 0.00 | 1.14 | 12.36 | 57.14 | -52.84 | 79.34 | 0.7944 | 531.0 | 422.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
