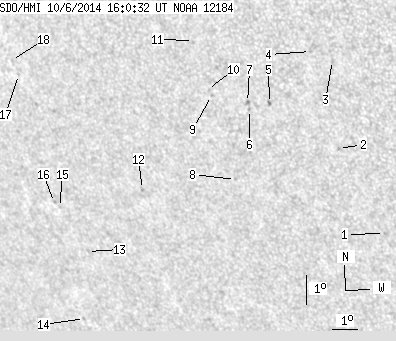

SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.75 | 0.00 | 13.49 | -18.55 | 74.02 | -35.96 | 126.01 | 0.6867 | 226.8 | 176.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.51 | -20.96 | 80.80 | -29.18 | 134.47 | 0.6402 | 681.0 | 561.4 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -18.20 | 79.68 | -30.30 | 130.01 | 0.6280 | 775.0 | 621.2 | |
| 0.00 | 1.84 | 0.00 | 1.14 | -15.33 | 79.97 | -30.00 | 126.45 | 0.6018 | 329.0 | 351.2 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -15.08 | 79.22 | -30.76 | 125.45 | 0.6083 | 468.0 | 323.3 | |
| 0.00 | 1.67 | 0.00 | 1.07 | -16.87 | 77.39 | -32.58 | 126.31 | 0.6418 | 702.0 | 605.9 | |
| 0.00 | 1.23 | 0.00 | 0.80 | -17.12 | 76.59 | -33.38 | 125.99 | 0.6521 | 605.0 | 460.9 | |
| 0.00 | 1.76 | 0.00 | 1.14 | -16.89 | 76.56 | -33.41 | 125.67 | 0.6508 | 774.0 | 619.3 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -19.48 | 75.53 | -34.45 | 128.13 | 0.6802 | 585.0 | 392.7 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -16.75 | 75.23 | -34.74 | 124.46 | 0.6642 | 683.0 | 556.5 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -16.56 | 75.12 | -34.86 | 124.14 | 0.6641 | 399.0 | 473.2 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -15.00 | 74.90 | -35.08 | 121.92 | 0.6562 | 58.0 | 149.8 | |
| 0.00 | 1.23 | 0.00 | 0.88 | -20.08 | 71.68 | -38.30 | 126.06 | 0.7223 | -615.0 | -535.2 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -22.39 | 68.61 | -41.36 | 126.75 | 0.7649 | -491.0 | -439.4 | |
| 0.00 | 1.40 | 0.00 | 1.12 | -24.77 | 67.54 | -42.44 | 128.73 | 0.7877 | -399.0 | -372.9 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -20.97 | 67.91 | -42.07 | 124.70 | 0.7633 | -550.0 | -487.9 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -20.81 | 67.74 | -42.23 | 124.43 | 0.7640 | -696.0 | -463.2 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -16.63 | 67.51 | -42.47 | 119.33 | 0.7444 | 395.0 | 336.8 | |
| 0.00 | 0.61 | 0.00 | 0.45 | -16.19 | 67.33 | -42.65 | 118.70 | 0.7440 | 379.0 | 393.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
