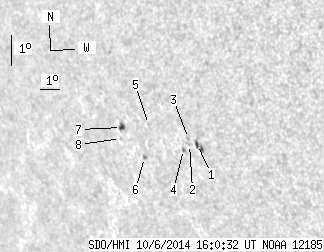

SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 17.56 | 3.52 | 14.73 | -12.77 | 59.34 | -50.64 | 110.98 | 0.8095 | -9.4 | 195.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 6.06 | 1.07 | 4.91 | -12.78 | 60.88 | -49.10 | 111.56 | 0.7948 | 464.2 | 589.6 | |
| 0.00 | 0.79 | 0.00 | 0.65 | -12.81 | 60.49 | -49.48 | 111.45 | 0.7987 | 724.0 | 661.6 | |
| 0.00 | 1.67 | 0.00 | 1.36 | -12.62 | 60.49 | -49.48 | 111.23 | 0.7981 | 542.0 | 507.9 | |
| 0.35 | 1.49 | 0.29 | 1.23 | -13.00 | 60.15 | -49.82 | 111.54 | 0.8026 | 465.2 | 423.2 | |
| 0.00 | 1.49 | 0.00 | 1.27 | -12.35 | 58.63 | -51.34 | 110.21 | 0.8151 | -257.0 | -219.4 | |
| 0.00 | 1.76 | 0.00 | 1.52 | -13.43 | 58.11 | -51.86 | 111.29 | 0.8232 | -709.0 | -549.9 | |
| 2.46 | 3.69 | 2.16 | 3.24 | -12.57 | 57.21 | -52.76 | 109.97 | 0.8289 | -570.7 | -306.7 | |
| 0.00 | 0.61 | 0.00 | 0.55 | -12.93 | 57.05 | -52.92 | 110.33 | 0.8314 | -254.0 | -269.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
