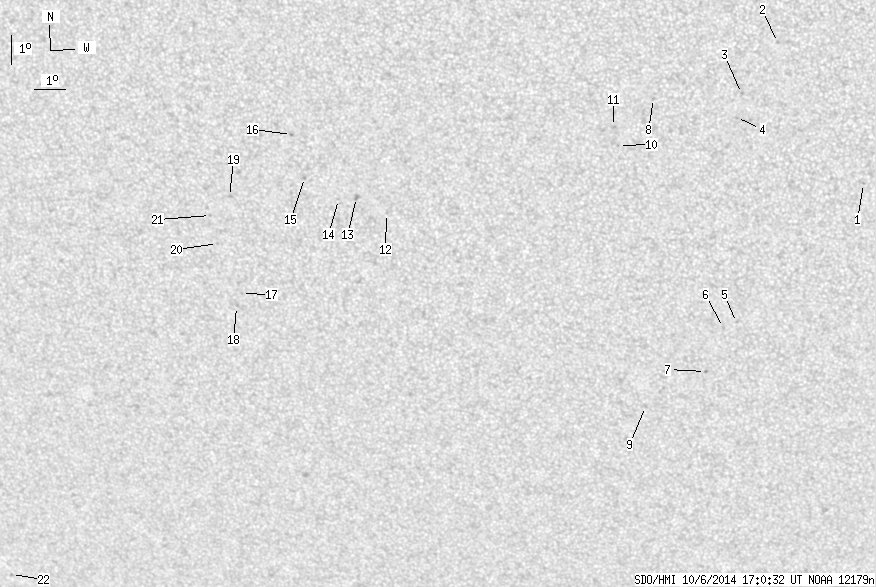

SDO HMI 2014-10-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.79 | 0.00 | 14.56 | -19.78 | 101.60 | -7.82 | 165.30 | 0.4717 | 12.9 | -25.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.38 | -18.10 | 114.09 | 4.67 | 190.57 | 0.4237 | 777.0 | 629.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.51 | 111.34 | 1.92 | 185.45 | 0.3440 | 932.0 | 712.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -15.14 | 110.23 | 0.81 | 182.13 | 0.3694 | 807.0 | 635.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.91 | 110.08 | 0.66 | 181.66 | 0.3819 | 732.0 | 623.4 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -22.74 | 110.10 | 0.68 | 181.28 | 0.4896 | 743.0 | 533.0 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -22.91 | 109.68 | 0.26 | 180.48 | 0.4921 | 573.0 | 444.7 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -24.44 | 109.09 | -0.34 | 179.41 | 0.5152 | 699.0 | 620.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.30 | 107.50 | -1.92 | 175.01 | 0.3732 | 778.0 | 617.3 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -25.67 | 107.09 | -2.34 | 176.05 | 0.5348 | 718.0 | 484.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.83 | 106.39 | -3.03 | 172.69 | 0.3997 | 732.0 | 578.8 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -16.21 | 106.24 | -3.18 | 172.12 | 0.3901 | 841.0 | 736.3 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -19.16 | 98.93 | -10.49 | 158.20 | 0.4652 | -775.0 | -576.1 | |
| 0.00 | 2.98 | 0.00 | 1.67 | -18.65 | 97.99 | -11.43 | 156.01 | 0.4636 | -885.0 | -697.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -18.73 | 97.41 | -12.01 | 155.00 | 0.4685 | -703.0 | -481.0 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -18.03 | 96.36 | -13.06 | 152.41 | 0.4660 | -864.0 | -675.6 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -16.63 | 96.05 | -13.38 | 150.31 | 0.4494 | -762.0 | -694.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -21.98 | 93.91 | -15.51 | 152.29 | 0.5353 | -692.0 | -611.7 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -22.43 | 93.69 | -15.73 | 152.37 | 0.5426 | -742.0 | -657.2 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -18.73 | 93.86 | -15.57 | 148.90 | 0.4940 | -769.0 | -627.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -20.31 | 93.30 | -16.13 | 149.70 | 0.5184 | -637.0 | -500.9 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -19.38 | 93.16 | -16.26 | 148.51 | 0.5077 | -676.0 | -529.1 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -32.53 | 83.49 | -25.93 | 149.23 | 0.7231 | -543.0 | -485.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
