SDO HMI 2014-10-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.13 | 247.05 | 35.20 | 133.58 | -13.98 | 120.96 | 11.54 | 208.97 | 0.4013 | 210.4 | 114.4 | |
|
previous
or next observation for the same group /

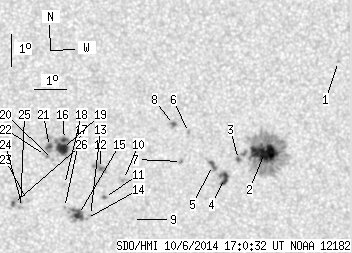

back to the solar disc SDO HMI 2014-10-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | -10.96 | 125.32 | 15.90 | 222.38 | 0.4007 | 812.0 | 665.7 | |
| 33.18 | 142.71 | 18.04 | 77.65 | -13.77 | 123.13 | 13.71 | 213.92 | 0.4142 | 1214.2 | 361.1 | |
| 0.88 | -2.00 | 0.48 | -2.00 | -13.97 | 122.32 | 12.90 | 212.05 | 0.4099 | 1018.2 | 999999 | |
| 5.88 | 9.74 | 3.20 | 5.30 | -14.57 | 121.91 | 12.49 | 210.46 | 0.4146 | 958.1 | 736.7 | |
| 2.19 | 6.06 | 1.19 | 3.28 | -14.14 | 121.50 | 12.08 | 210.18 | 0.4055 | 1040.2 | 742.0 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -13.07 | 120.70 | 11.27 | 209.86 | 0.3842 | 891.0 | 694.7 | |
| 0.00 | 2.02 | 0.00 | 1.09 | -13.99 | 120.52 | 11.10 | 208.30 | 0.3957 | 884.0 | 782.4 | |
| 0.97 | 3.86 | 0.52 | 2.06 | -12.81 | 120.21 | 10.79 | 209.14 | 0.3766 | 1072.5 | 857.2 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -15.82 | 119.06 | 9.64 | 203.13 | 0.4119 | -684.0 | -585.0 | |
| 0.00 | 3.16 | 0.00 | 1.70 | -14.53 | 118.72 | 9.30 | 203.71 | 0.3908 | -915.0 | -681.4 | |
| 0.44 | 1.93 | 0.24 | 1.04 | -15.09 | 118.15 | 8.73 | 201.83 | 0.3956 | -864.2 | -707.1 | |
| 0.79 | 8.95 | 0.42 | 4.79 | -14.16 | 117.99 | 8.57 | 202.39 | 0.3807 | 1044.4 | 808.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -15.67 | 117.73 | 8.31 | 200.35 | 0.4018 | -730.0 | -679.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.76 | 117.61 | 8.19 | 200.00 | 0.4025 | -629.0 | -530.5 | |
| 6.49 | 14.48 | 3.51 | 7.82 | -15.63 | 117.35 | 7.93 | 199.53 | 0.3991 | -1006.1 | -735.2 | |
| 1.93 | 33.26 | 1.02 | 17.66 | -13.21 | 116.83 | 7.41 | 200.54 | 0.3596 | -1137.7 | -792.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.39 | 116.90 | 7.48 | 198.70 | 0.3932 | -860.0 | -725.0 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -14.65 | 116.88 | 7.46 | 199.29 | 0.3818 | -819.0 | -589.6 | |
| 9.48 | -16.00 | 5.04 | -16.00 | -13.50 | 116.78 | 7.36 | 200.12 | 0.3637 | -1075.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -13.85 | 116.48 | 7.06 | 199.04 | 0.3674 | -766.0 | -606.8 | |
| 1.93 | -16.00 | 1.02 | -16.00 | -13.43 | 116.38 | 6.95 | 199.16 | 0.3604 | -1165.7 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.35 | -13.72 | 116.26 | 6.84 | 198.60 | 0.3642 | -564.0 | -647.7 | |
| 0.00 | 2.28 | 0.00 | 1.22 | -15.15 | 115.74 | 6.32 | 196.13 | 0.3839 | -762.0 | -715.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.21 | 115.55 | 6.13 | 195.64 | 0.3840 | -994.0 | -805.8 | |
| 0.00 | 1.84 | 0.00 | 0.99 | -15.37 | 115.53 | 6.11 | 195.46 | 0.3864 | -773.0 | -642.8 | |
| 0.97 | 4.91 | 0.52 | 2.63 | -15.24 | 115.30 | 5.88 | 195.01 | 0.3834 | -950.2 | -847.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
