SDO HMI 2014-10-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 37.90 | 0.00 | 19.84 | 12.81 | 92.34 | -17.08 | 68.22 | 0.3100 | -59.0 | 75.3 | |
|
previous
or next observation for the same group /

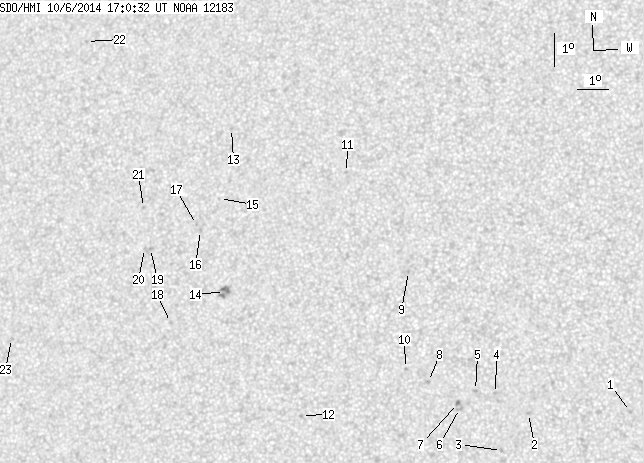

back to the solar disc SDO HMI 2014-10-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.70 | 10.17 | 102.35 | -7.07 | 61.43 | 0.1386 | -799.0 | -579.4 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 10.06 | 99.21 | -10.21 | 69.57 | 0.1871 | -915.0 | -732.4 | |
| 0.00 | 1.76 | 0.00 | 0.89 | 8.93 | 98.41 | -11.01 | 76.38 | 0.1950 | -888.0 | -653.0 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 10.64 | 98.17 | -11.25 | 68.51 | 0.2070 | -883.0 | -705.1 | |
| 0.00 | 1.67 | 0.00 | 0.85 | 10.72 | 97.55 | -11.87 | 69.13 | 0.2174 | -1029.0 | -868.7 | |
| 0.00 | 2.55 | 0.00 | 1.29 | 10.17 | 97.07 | -12.35 | 72.18 | 0.2222 | -573.0 | -612.0 | |
| 0.00 | 2.37 | 0.00 | 1.20 | 10.31 | 97.00 | -12.42 | 71.63 | 0.2240 | -1055.0 | -853.8 | |
| 0.00 | 1.67 | 0.00 | 0.85 | 10.95 | 96.07 | -13.35 | 70.16 | 0.2422 | -852.0 | -622.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 14.25 | 95.26 | -14.16 | 59.57 | 0.2763 | -925.0 | -765.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 11.33 | 95.33 | -14.09 | 69.64 | 0.2558 | -711.0 | -636.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 17.20 | 93.03 | -16.39 | 54.66 | 0.3319 | 899.0 | 719.8 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 9.82 | 92.11 | -17.31 | 77.66 | 0.3015 | -770.0 | -541.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 18.41 | 89.09 | -20.33 | 56.98 | 0.3948 | 724.0 | 578.9 | |
| 0.00 | 9.04 | 0.00 | 4.80 | 13.46 | 89.37 | -20.05 | 68.85 | 0.3590 | 1159.0 | 923.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 16.27 | 88.94 | -20.49 | 62.13 | 0.3817 | 633.0 | 452.0 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 15.27 | 88.41 | -21.01 | 65.05 | 0.3832 | 723.0 | 559.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 15.45 | 88.26 | -21.16 | 64.76 | 0.3864 | 787.0 | 614.8 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 12.46 | 87.68 | -21.74 | 72.67 | 0.3805 | 699.0 | 640.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 14.67 | 86.80 | -22.62 | 67.84 | 0.4035 | 887.0 | 760.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 14.66 | 86.60 | -22.82 | 68.01 | 0.4064 | 713.0 | 577.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 15.90 | 86.43 | -23.00 | 65.28 | 0.4154 | 739.0 | 558.6 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 20.88 | 83.70 | -25.72 | 57.35 | 0.4836 | 818.0 | 641.1 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 11.75 | 82.40 | -27.03 | 76.77 | 0.4589 | -739.0 | -589.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
