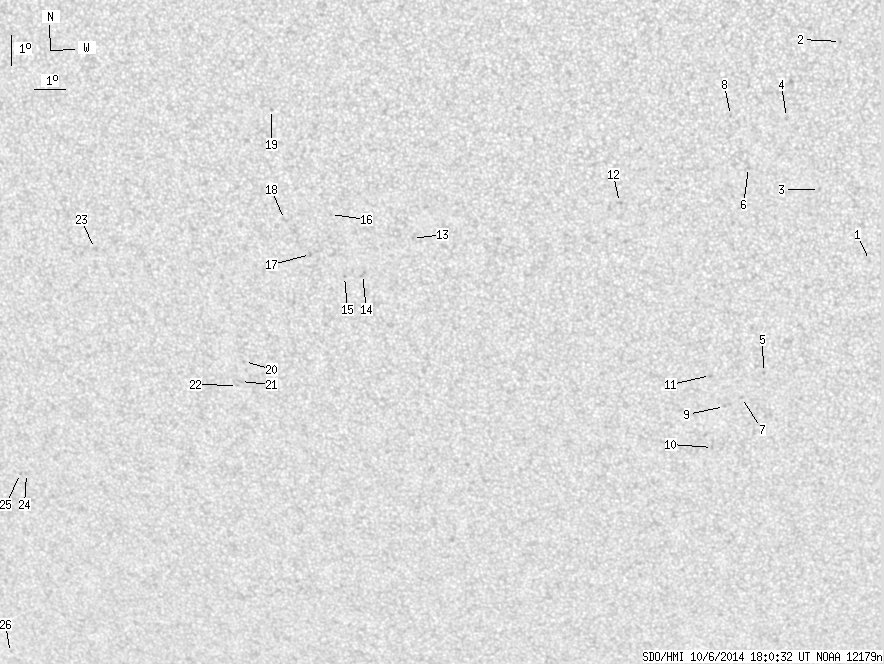

SDO HMI 2014-10-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 33.86 | 0.00 | 19.10 | -19.11 | 100.82 | -8.05 | 165.22 | 0.4682 | -16.1 | -46.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.34 | -18.13 | 114.08 | 5.21 | 191.74 | 0.4259 | 768.0 | 646.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -11.08 | 113.03 | 4.16 | 193.33 | 0.3104 | 806.0 | 622.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -15.80 | 112.45 | 3.58 | 189.04 | 0.3845 | 740.0 | 570.1 | |
| 0.00 | 2.11 | 0.00 | 1.11 | -13.47 | 111.40 | 2.53 | 187.19 | 0.3446 | 756.0 | 656.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.85 | 110.77 | 1.90 | 183.72 | 0.4768 | 790.0 | 708.0 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -15.07 | 110.24 | 1.37 | 183.60 | 0.3688 | 484.0 | 519.8 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -22.71 | 110.07 | 1.20 | 182.26 | 0.4893 | 731.0 | 607.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.40 | 109.68 | 0.81 | 182.31 | 0.3411 | 734.0 | 624.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -23.01 | 109.51 | 0.64 | 181.21 | 0.4937 | 701.0 | 565.0 | |
| 0.00 | 1.49 | 0.00 | 0.86 | -24.44 | 109.12 | 0.26 | 180.45 | 0.5151 | 855.0 | 563.9 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -21.95 | 109.06 | 0.19 | 180.37 | 0.4773 | 614.0 | 560.8 | |
| 0.00 | 2.02 | 0.00 | 1.08 | -16.20 | 106.22 | -2.65 | 173.42 | 0.3890 | 1004.0 | 758.1 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -17.45 | 99.66 | -9.21 | 159.27 | 0.4332 | -811.0 | -633.6 | |
| 0.00 | 2.37 | 0.00 | 1.32 | -18.67 | 97.99 | -10.88 | 157.05 | 0.4605 | -842.0 | -713.5 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -18.75 | 97.40 | -11.47 | 156.02 | 0.4652 | -736.0 | -625.2 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -16.72 | 97.09 | -11.78 | 153.42 | 0.4389 | -669.0 | -499.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -18.04 | 96.35 | -12.51 | 153.42 | 0.4624 | -849.0 | -739.5 | |
| 0.00 | 2.11 | 0.00 | 1.17 | -16.92 | 95.60 | -13.27 | 150.83 | 0.4525 | -426.0 | -476.8 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -13.38 | 95.42 | -13.45 | 146.03 | 0.4068 | -883.0 | -666.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -21.69 | 93.86 | -15.01 | 152.78 | 0.5282 | -709.0 | -675.6 | |
| 0.00 | 2.19 | 0.00 | 1.29 | -22.38 | 93.65 | -15.22 | 153.09 | 0.5385 | -693.0 | -598.2 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -22.52 | 93.53 | -15.34 | 153.04 | 0.5411 | -626.0 | -499.2 | |
| 0.00 | 2.72 | 0.00 | 1.58 | -18.07 | 89.26 | -19.61 | 142.02 | 0.5205 | -668.0 | -542.1 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -25.88 | 85.64 | -23.23 | 146.02 | 0.6372 | -380.0 | -413.5 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -25.89 | 85.42 | -23.45 | 145.78 | 0.6389 | -732.0 | -628.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -32.58 | 83.31 | -25.56 | 149.63 | 0.7213 | -378.0 | -435.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
