SDO HMI 2014-10-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.99 | 230.02 | 27.62 | 124.72 | -14.05 | 121.00 | 12.13 | 210.12 | 0.4071 | 221.5 | 100.3 | |
|
previous
or next observation for the same group /

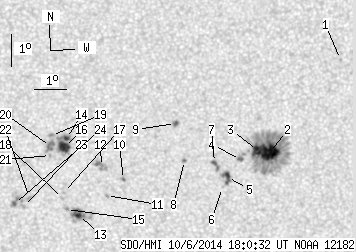

back to the solar disc SDO HMI 2014-10-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.67 | -10.95 | 125.34 | 16.47 | 223.41 | 0.4067 | 676.0 | 516.6 | |
| 21.94 | 130.59 | 11.97 | 71.24 | -13.82 | 123.25 | 14.38 | 215.12 | 0.4209 | 1243.1 | 365.7 | |
| 7.46 | -2.00 | 4.06 | -2.00 | -13.75 | 122.86 | 13.99 | 214.50 | 0.4164 | 1237.7 | 999999 | |
| 0.97 | 5.79 | 0.53 | 3.15 | -14.02 | 122.34 | 13.47 | 213.12 | 0.4153 | 1002.6 | 880.3 | |
| 4.39 | 7.72 | 2.39 | 4.21 | -14.58 | 121.96 | 13.09 | 211.63 | 0.4197 | 1016.1 | 788.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -14.90 | 121.82 | 12.95 | 210.95 | 0.4228 | 532.0 | 374.2 | |
| 1.14 | 5.44 | 0.62 | 2.95 | -14.09 | 121.52 | 12.65 | 211.40 | 0.4094 | 1041.3 | 840.3 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -14.00 | 120.56 | 11.69 | 209.55 | 0.4005 | 934.0 | 836.8 | |
| 1.05 | 2.81 | 0.56 | 1.50 | -12.82 | 120.22 | 11.35 | 210.38 | 0.3813 | 1047.8 | 877.6 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -14.57 | 118.67 | 9.80 | 204.79 | 0.3947 | -968.0 | -838.6 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -15.07 | 118.16 | 9.29 | 203.12 | 0.3987 | -932.0 | -808.2 | |
| 0.00 | 8.43 | 0.00 | 4.52 | -14.14 | 117.96 | 9.09 | 203.65 | 0.3837 | 951.0 | 801.0 | |
| 2.72 | 18.25 | 1.47 | 9.87 | -15.70 | 117.30 | 8.43 | 200.61 | 0.4030 | -1048.8 | -765.2 | |
| 2.02 | 18.61 | 1.07 | 9.90 | -13.22 | 116.84 | 7.97 | 201.93 | 0.3630 | -1076.9 | -831.8 | |
| 0.00 | 2.02 | 0.00 | 1.09 | -15.50 | 116.92 | 8.05 | 199.92 | 0.3978 | -961.0 | -806.4 | |
| 8.51 | -14.00 | 4.53 | -14.00 | -13.51 | 116.79 | 7.92 | 201.50 | 0.3670 | -1086.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.95 | 116.80 | 7.94 | 200.15 | 0.3889 | -738.0 | -613.3 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -15.14 | 116.78 | 7.91 | 199.92 | 0.3917 | -757.0 | -570.1 | |
| 0.00 | 2.02 | 0.00 | 1.07 | -13.12 | 116.37 | 7.50 | 200.86 | 0.3587 | -1019.0 | -839.0 | |
| 0.00 | 6.93 | 0.00 | 3.68 | -13.47 | 116.35 | 7.48 | 200.45 | 0.3639 | -1003.0 | -909.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.75 | 116.36 | 7.49 | 200.20 | 0.3683 | -778.0 | -614.9 | |
| 0.00 | 2.19 | 0.00 | 1.18 | -15.09 | 115.75 | 6.88 | 197.52 | 0.3856 | -939.0 | -762.2 | |
| 0.00 | 2.19 | 0.00 | 1.18 | -15.38 | 115.57 | 6.70 | 196.87 | 0.3892 | -688.0 | -559.8 | |
| 0.79 | 6.76 | 0.42 | 3.63 | -15.28 | 115.28 | 6.41 | 196.27 | 0.3863 | -952.8 | -845.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
