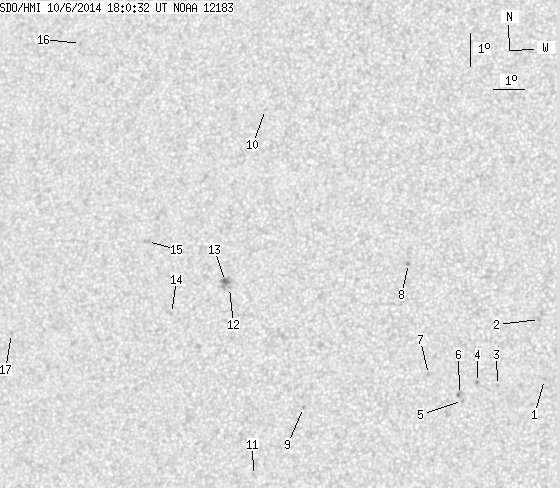

SDO HMI 2014-10-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 31.44 | 0.70 | 16.47 | 12.93 | 91.52 | -17.35 | 67.74 | 0.3157 | -288.2 | 47.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | 10.83 | 99.66 | -9.21 | 63.59 | 0.1764 | -821.0 | -632.9 | |
| 0.00 | 1.76 | 0.00 | 0.89 | 12.63 | 99.44 | -9.43 | 55.60 | 0.1946 | -926.0 | -675.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 10.62 | 98.21 | -10.66 | 67.59 | 0.1976 | -871.0 | -689.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 10.70 | 97.58 | -11.28 | 68.29 | 0.2079 | -1076.0 | -912.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.15 | 97.14 | -11.73 | 71.45 | 0.2121 | -951.0 | -738.0 | |
| 0.00 | 2.37 | 0.00 | 1.20 | 10.33 | 97.04 | -11.83 | 70.79 | 0.2146 | -902.0 | -828.4 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 10.91 | 96.05 | -12.82 | 69.66 | 0.2334 | -683.0 | -522.0 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 14.23 | 95.25 | -13.62 | 58.70 | 0.2684 | -1078.0 | -780.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 9.81 | 92.16 | -16.71 | 77.34 | 0.2916 | -797.0 | -597.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 18.78 | 90.20 | -18.66 | 54.09 | 0.3757 | 711.0 | 549.2 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 7.72 | 90.67 | -18.20 | 84.81 | 0.3121 | -715.0 | -507.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 13.34 | 89.55 | -19.32 | 68.56 | 0.3473 | 828.0 | 677.2 | |
| 1.32 | 9.57 | 0.70 | 5.06 | 13.52 | 89.40 | -19.46 | 68.21 | 0.3505 | 1116.4 | 858.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 12.49 | 87.72 | -21.15 | 72.24 | 0.3715 | 791.0 | 579.3 | |
| 0.00 | 1.93 | 0.00 | 1.04 | 14.63 | 86.72 | -22.15 | 67.58 | 0.3963 | 882.0 | 677.5 | |
| 0.00 | 1.67 | 0.00 | 0.94 | 20.56 | 83.60 | -25.27 | 57.56 | 0.4756 | 697.0 | 566.9 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 11.66 | 82.43 | -26.43 | 76.77 | 0.4498 | -683.0 | -523.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
