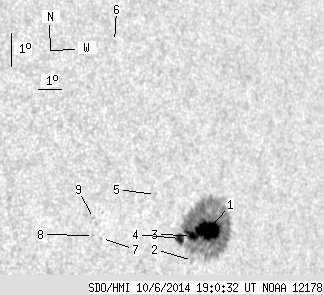

SDO HMI 2014-10-06 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.53 | 231.09 | 35.77 | 170.72 | -1.70 | 155.38 | 47.07 | 261.78 | 0.7417 | 849.0 | 262.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.31 | 223.62 | 25.42 | 165.46 | -1.69 | 155.72 | 47.41 | 261.88 | 0.7456 | 1024.0 | 269.6 | |
| 0.00 | 2.72 | 0.00 | 2.00 | -2.54 | 155.09 | 46.78 | 260.58 | 0.7402 | 327.0 | 291.5 | |
| 8.16 | -1.00 | 5.96 | -1.00 | -1.78 | 155.02 | 46.70 | 261.58 | 0.7377 | 952.9 | 999999 | |
| 6.06 | -1.00 | 4.39 | -1.00 | -1.83 | 154.54 | 46.22 | 261.39 | 0.7322 | 890.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.93 | -0.41 | 153.44 | 45.12 | 263.07 | 0.7161 | 649.0 | 520.0 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 4.32 | 151.87 | 43.56 | 269.49 | 0.6895 | 451.0 | 454.4 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -1.56 | 151.19 | 42.88 | 260.88 | 0.6912 | -497.0 | -393.7 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -1.44 | 150.86 | 42.55 | 260.96 | 0.6868 | -556.0 | -486.3 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -0.93 | 150.86 | 42.54 | 261.70 | 0.6855 | -528.0 | -487.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
