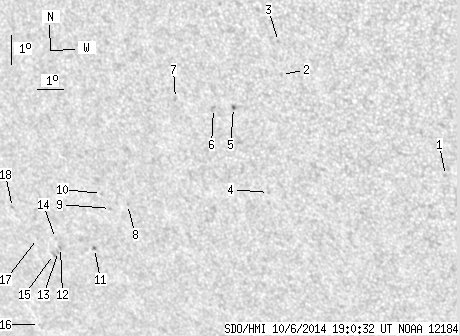

SDO HMI 2014-10-06 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 21.59 | 0.33 | 14.73 | -19.66 | 73.31 | -35.01 | 128.12 | 0.6848 | -7.1 | -21.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.79 | -18.71 | 84.61 | -23.70 | 137.52 | 0.5660 | 652.0 | 515.3 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -15.68 | 79.33 | -28.98 | 127.88 | 0.5933 | 525.0 | 423.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -14.62 | 79.39 | -28.93 | 126.45 | 0.5841 | 539.0 | 447.2 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -19.61 | 78.14 | -30.17 | 131.90 | 0.6384 | 594.0 | 520.1 | |
| 0.53 | 1.76 | 0.33 | 1.11 | -16.86 | 77.40 | -30.92 | 127.72 | 0.6239 | 832.0 | 649.3 | |
| 0.00 | 1.84 | 0.00 | 1.18 | -16.94 | 76.65 | -31.67 | 127.17 | 0.6325 | 657.0 | 614.1 | |
| 0.00 | 1.76 | 0.00 | 1.14 | -16.70 | 75.29 | -33.03 | 125.73 | 0.6454 | 697.0 | 492.4 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -20.36 | 72.59 | -35.72 | 128.22 | 0.6991 | -690.0 | -601.8 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -20.55 | 71.87 | -36.45 | 127.91 | 0.7074 | -537.0 | -455.3 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -20.06 | 71.64 | -36.67 | 127.17 | 0.7063 | -637.0 | -522.3 | |
| 0.00 | 1.67 | 0.00 | 1.20 | -21.97 | 70.80 | -37.52 | 128.80 | 0.7270 | 587.0 | 484.5 | |
| 0.00 | 1.40 | 0.00 | 1.03 | -22.04 | 69.38 | -38.94 | 127.90 | 0.7407 | -632.0 | -634.7 | |
| 0.00 | 1.32 | 0.00 | 0.97 | -22.18 | 69.24 | -39.07 | 127.98 | 0.7428 | -551.0 | -619.7 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -21.74 | 69.26 | -39.05 | 127.49 | 0.7399 | -156.0 | -265.0 | |
| 0.00 | 1.84 | 0.00 | 1.36 | -22.30 | 68.99 | -39.32 | 127.95 | 0.7459 | -596.0 | -537.7 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -24.82 | 67.46 | -40.86 | 129.76 | 0.7747 | -491.0 | -469.3 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -21.80 | 68.49 | -39.83 | 127.05 | 0.7474 | -563.0 | -456.7 | |
| 0.00 | 1.23 | 0.00 | 0.91 | -20.81 | 67.76 | -40.55 | 125.45 | 0.7483 | -634.0 | -477.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
