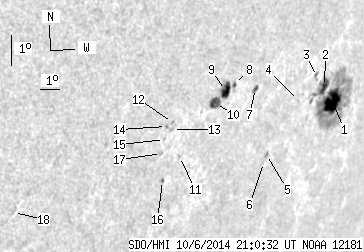

SDO HMI 2014-10-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.66 | 191.88 | 52.17 | 195.12 | -12.26 | 165.29 | 58.08 | 252.00 | 0.8730 | 125.8 | 66.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.28 | 144.03 | 26.80 | 152.63 | -12.43 | 166.80 | 59.59 | 252.27 | 0.8861 | 636.6 | 139.7 | |
| 7.64 | -1.00 | 7.89 | -1.00 | -11.89 | 166.12 | 58.91 | 252.68 | 0.8798 | 711.2 | 999999 | |
| 0.00 | 2.46 | 0.00 | 2.49 | -11.52 | 165.52 | 58.31 | 252.92 | 0.8742 | 652.0 | 501.2 | |
| 0.00 | 0.79 | 0.00 | 0.79 | -12.19 | 164.70 | 57.49 | 251.95 | 0.8690 | 269.0 | 229.1 | |
| 0.00 | 2.11 | 0.00 | 2.05 | -13.76 | 163.45 | 56.24 | 249.81 | 0.8624 | -446.0 | -337.9 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -14.01 | 163.37 | 56.16 | 249.51 | 0.8623 | -234.0 | -265.8 | |
| 1.49 | 3.42 | 1.38 | 3.16 | -11.56 | 162.12 | 54.91 | 251.88 | 0.8456 | 384.2 | 255.5 | |
| 0.88 | 3.16 | 0.78 | 2.83 | -11.33 | 160.95 | 53.73 | 251.78 | 0.8344 | -476.6 | -353.0 | |
| 9.65 | 24.14 | 8.55 | 21.29 | -11.48 | 160.52 | 53.31 | 251.48 | 0.8309 | -689.6 | -444.9 | |
| 7.28 | -9.00 | 6.40 | -9.00 | -11.84 | 160.11 | 52.90 | 250.91 | 0.8281 | -637.4 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.51 | -13.38 | 158.74 | 51.53 | 248.64 | 0.8200 | -525.0 | -387.8 | |
| 0.00 | 1.05 | 0.00 | 0.89 | -12.25 | 158.07 | 50.86 | 249.73 | 0.8102 | -644.0 | -555.4 | |
| 0.00 | 1.58 | 0.00 | 1.33 | -12.48 | 158.13 | 50.92 | 249.48 | 0.8115 | -597.0 | -553.4 | |
| 0.00 | 1.32 | 0.00 | 1.10 | -12.35 | 157.81 | 50.60 | 249.51 | 0.8080 | -684.0 | -614.5 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -12.76 | 157.82 | 50.61 | 249.03 | 0.8094 | -633.0 | -529.6 | |
| 0.44 | 1.58 | 0.37 | 1.35 | -14.08 | 158.11 | 50.90 | 247.59 | 0.8164 | -566.6 | -438.8 | |
| 0.00 | 1.49 | 0.00 | 1.26 | -13.20 | 157.80 | 50.59 | 248.50 | 0.8106 | -529.0 | -519.9 | |
| 0.00 | 1.49 | 0.00 | 1.12 | -14.52 | 151.37 | 44.16 | 244.14 | 0.7518 | -637.0 | -430.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
