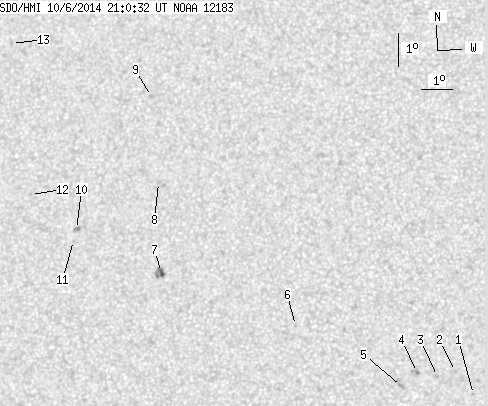

SDO HMI 2014-10-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.46 | 24.76 | 1.29 | 12.95 | 13.85 | 90.76 | -16.46 | 64.39 | 0.3063 | 78.0 | 262.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | 10.04 | 99.44 | -7.77 | 64.34 | 0.1484 | -871.0 | -705.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 10.73 | 98.87 | -8.34 | 61.94 | 0.1623 | -898.0 | -675.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.57 | 98.32 | -8.89 | 64.22 | 0.1696 | -763.0 | -595.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.68 | 97.70 | -9.51 | 65.07 | 0.1800 | -1158.0 | -913.8 | |
| 0.00 | 2.72 | 0.00 | 1.37 | 10.25 | 97.22 | -10.00 | 68.23 | 0.1848 | -907.0 | -775.7 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 12.01 | 93.84 | -13.37 | 66.11 | 0.2485 | -719.0 | -606.8 | |
| 2.46 | 7.90 | 1.29 | 4.14 | 13.49 | 89.48 | -17.74 | 66.64 | 0.3241 | 1187.7 | 937.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 16.21 | 89.15 | -18.06 | 59.55 | 0.3469 | 804.0 | 618.7 | |
| 0.00 | 1.84 | 0.00 | 0.98 | 18.82 | 88.65 | -18.57 | 53.87 | 0.3748 | 734.0 | 491.2 | |
| 0.00 | 3.34 | 0.00 | 1.78 | 14.69 | 86.59 | -20.62 | 66.16 | 0.3741 | 879.0 | 747.4 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 14.35 | 86.52 | -20.69 | 67.07 | 0.3732 | 710.0 | 619.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 15.69 | 84.95 | -22.26 | 65.16 | 0.4036 | 842.0 | 669.0 | |
| 0.00 | 1.58 | 0.00 | 0.88 | 20.27 | 83.68 | -23.54 | 56.51 | 0.4510 | 851.0 | 631.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
