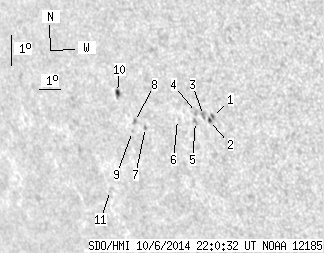

SDO HMI 2014-10-06 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.08 | 22.65 | 2.44 | 17.94 | -13.17 | 58.95 | -47.71 | 112.62 | 0.7820 | 127.3 | 122.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 3.42 | 0.40 | 2.59 | -12.80 | 61.34 | -45.32 | 113.18 | 0.7566 | 718.0 | 604.2 | |
| 0.79 | -1.00 | 0.60 | -1.00 | -12.94 | 61.17 | -45.49 | 113.28 | 0.7589 | 623.8 | 999999 | |
| 0.00 | 3.25 | 0.00 | 2.47 | -12.80 | 60.94 | -45.72 | 113.01 | 0.7608 | 754.0 | 612.4 | |
| 0.00 | 2.28 | 0.00 | 1.74 | -12.73 | 60.65 | -46.01 | 112.79 | 0.7636 | 539.0 | 490.0 | |
| 0.00 | 2.11 | 0.00 | 1.62 | -13.02 | 60.53 | -46.13 | 113.10 | 0.7659 | 568.0 | 430.1 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -13.03 | 59.72 | -46.94 | 112.75 | 0.7742 | 290.0 | 229.8 | |
| 0.00 | 1.58 | 0.00 | 1.27 | -13.42 | 58.15 | -48.51 | 112.56 | 0.7913 | -505.0 | -513.3 | |
| 0.00 | 2.19 | 0.00 | 1.78 | -13.27 | 57.67 | -48.99 | 112.19 | 0.7954 | -682.0 | -547.6 | |
| 0.00 | 0.97 | 0.00 | 0.79 | -13.60 | 57.48 | -49.17 | 112.51 | 0.7984 | -511.0 | -412.1 | |
| 1.76 | 4.13 | 1.44 | 3.38 | -12.40 | 57.10 | -49.56 | 110.94 | 0.7981 | -485.4 | -404.9 | |
| 0.00 | 2.19 | 0.00 | 1.89 | -15.63 | 55.78 | -50.88 | 114.20 | 0.8213 | 323.0 | 280.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
