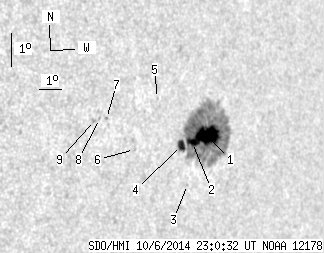

SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.42 | 223.32 | 34.25 | 172.57 | -1.75 | 155.45 | 49.34 | 262.25 | 0.7674 | 730.8 | 266.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.51 | 217.53 | 24.43 | 168.40 | -1.71 | 155.80 | 49.69 | 262.38 | 0.7713 | 904.7 | 281.4 | |
| 6.85 | -1.00 | 5.23 | -1.00 | -1.86 | 155.11 | 49.01 | 262.03 | 0.7640 | 907.0 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -3.12 | 154.94 | 48.84 | 260.36 | 0.7648 | 209.0 | 254.3 | |
| 6.06 | -1.00 | 4.59 | -1.00 | -1.91 | 154.61 | 48.50 | 261.85 | 0.7585 | 791.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -0.39 | 153.50 | 47.39 | 263.60 | 0.7429 | 144.0 | 253.5 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -1.85 | 152.52 | 46.41 | 261.42 | 0.7344 | 154.0 | 299.2 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -0.81 | 151.28 | 45.18 | 262.53 | 0.7176 | -506.0 | -446.8 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -0.79 | 150.98 | 44.88 | 262.49 | 0.7139 | -354.0 | -437.1 | |
| 0.00 | 1.58 | 0.00 | 1.11 | -0.83 | 150.77 | 44.67 | 262.38 | 0.7115 | -709.0 | -634.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
