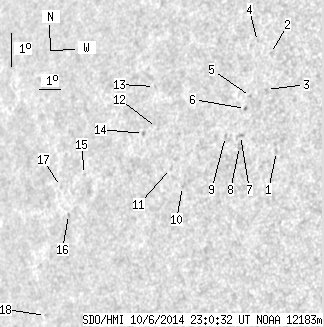

SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.31 | 0.00 | 14.30 | 13.03 | 57.81 | -48.30 | 78.12 | 0.7447 | 1.4 | -35.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.39 | 13.26 | 61.77 | -44.33 | 77.56 | 0.6989 | -353.0 | -293.3 | |
| 0.00 | 0.61 | 0.00 | 0.43 | 16.18 | 60.75 | -45.36 | 73.58 | 0.7147 | -190.0 | -252.4 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 15.09 | 60.88 | -45.23 | 75.09 | 0.7116 | -575.0 | -446.1 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 16.50 | 60.07 | -46.03 | 73.26 | 0.7230 | -470.0 | -403.0 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 14.82 | 60.24 | -45.87 | 75.55 | 0.7188 | -338.0 | -459.3 | |
| 0.00 | 1.23 | 0.00 | 0.87 | 14.45 | 60.12 | -45.99 | 76.09 | 0.7198 | -263.0 | -385.1 | |
| 0.00 | 1.67 | 0.00 | 1.18 | 13.62 | 60.11 | -46.00 | 77.23 | 0.7191 | -680.0 | -449.3 | |
| 0.00 | 2.11 | 0.00 | 1.50 | 13.29 | 60.15 | -45.96 | 77.69 | 0.7184 | -410.0 | -375.6 | |
| 0.00 | 1.23 | 0.00 | 0.88 | 13.54 | 59.46 | -46.65 | 77.41 | 0.7267 | -155.0 | -191.0 | |
| 0.00 | 1.05 | 0.00 | 0.78 | 11.89 | 57.90 | -48.21 | 79.76 | 0.7437 | 480.0 | 382.2 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 12.39 | 57.22 | -48.89 | 79.14 | 0.7516 | 432.0 | 311.0 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 13.55 | 56.24 | -49.86 | 77.65 | 0.7631 | 327.0 | 375.5 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 14.77 | 55.78 | -50.33 | 76.10 | 0.7690 | 494.0 | 388.1 | |
| 0.00 | 1.32 | 0.00 | 1.02 | 13.32 | 55.68 | -50.43 | 77.99 | 0.7691 | 367.0 | 353.3 | |
| 0.00 | 0.88 | 0.00 | 0.71 | 11.86 | 53.16 | -52.95 | 79.97 | 0.7955 | 277.0 | 284.6 | |
| 0.00 | 1.40 | 0.00 | 1.15 | 10.60 | 52.67 | -53.44 | 81.56 | 0.8004 | 475.0 | 419.1 | |
| 0.00 | 0.88 | 0.00 | 0.73 | 11.39 | 52.04 | -54.06 | 80.57 | 0.8068 | 143.0 | 205.7 | |
| 0.00 | 0.61 | 0.00 | 0.51 | 7.50 | 52.15 | -53.96 | 85.41 | 0.8065 | 465.0 | 385.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
