SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.57 | 41.97 | 6.80 | 29.08 | -21.34 | 71.24 | -34.87 | 130.32 | 0.6947 | 28.1 | -51.1 | |
|
previous
or next observation for the same group /

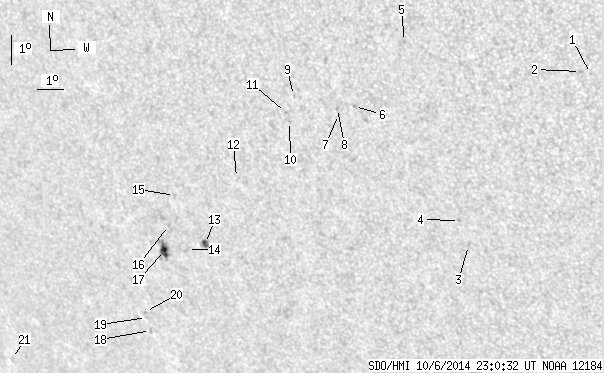

back to the solar disc SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.40 | -15.37 | 85.77 | -20.34 | 137.42 | 0.4973 | 583.0 | 511.2 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -15.32 | 85.44 | -20.67 | 136.89 | 0.5001 | 802.0 | 643.6 | |
| 0.00 | 1.58 | 0.00 | 0.98 | -21.26 | 80.74 | -25.36 | 138.72 | 0.6073 | 626.0 | 378.8 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -20.43 | 80.58 | -25.53 | 137.56 | 0.6007 | 607.0 | 588.8 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -14.63 | 79.56 | -26.55 | 128.81 | 0.5572 | 486.0 | 518.9 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -16.84 | 77.47 | -28.64 | 129.78 | 0.5991 | 411.0 | 426.9 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -17.13 | 76.84 | -29.26 | 129.57 | 0.6083 | 678.0 | 505.5 | |
| 0.00 | 1.67 | 0.00 | 1.04 | -16.94 | 76.84 | -29.26 | 129.31 | 0.6067 | 859.0 | 659.4 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -16.60 | 75.31 | -30.80 | 127.47 | 0.6205 | 419.0 | 355.3 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -17.47 | 75.00 | -31.11 | 128.34 | 0.6306 | 599.0 | 494.1 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -17.18 | 74.91 | -31.20 | 127.88 | 0.6293 | 484.0 | 503.1 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -19.46 | 72.59 | -33.52 | 128.83 | 0.6707 | -249.0 | -318.4 | |
| 2.90 | 5.71 | 2.02 | 3.98 | -21.79 | 70.78 | -35.33 | 130.19 | 0.7053 | 665.2 | 419.5 | |
| 0.00 | 2.37 | 0.00 | 1.67 | -22.04 | 69.98 | -36.13 | 129.89 | 0.7146 | -153.0 | -117.3 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -20.23 | 69.98 | -36.13 | 127.76 | 0.7021 | -323.0 | -397.0 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -21.27 | 69.45 | -36.66 | 128.61 | 0.7143 | -509.0 | -398.6 | |
| 6.67 | 14.92 | 4.78 | 10.69 | -22.15 | 69.02 | -37.09 | 129.31 | 0.7242 | -868.5 | -568.1 | |
| 0.00 | 1.76 | 0.00 | 1.33 | -25.00 | 67.46 | -38.65 | 131.42 | 0.7571 | -503.0 | -422.4 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -24.55 | 67.46 | -38.65 | 130.92 | 0.7541 | -449.0 | -457.0 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -24.34 | 67.49 | -38.61 | 130.72 | 0.7525 | -468.0 | -505.8 | |
| 0.00 | 2.02 | 0.00 | 1.75 | -26.53 | 60.57 | -45.53 | 128.84 | 0.8219 | -368.0 | -243.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
