SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 24.13 | 2.19 | 18.54 | -13.10 | 60.11 | -45.99 | 113.27 | 0.7646 | 65.1 | 296.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

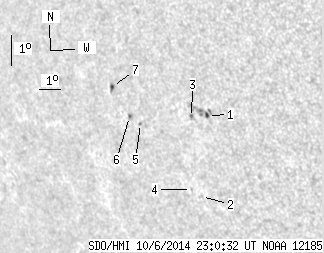

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.23 | 13.34 | 0.92 | 10.03 | -12.92 | 61.27 | -44.83 | 113.56 | 0.7520 | 654.4 | 569.5 | |
| 0.00 | 1.05 | 0.00 | 0.82 | -15.58 | 60.32 | -45.79 | 116.36 | 0.7729 | 481.0 | 224.0 | |
| 0.00 | 3.07 | 0.00 | 2.33 | -13.05 | 60.54 | -45.56 | 113.38 | 0.7601 | 560.0 | 437.1 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -15.39 | 59.92 | -46.19 | 115.94 | 0.7760 | 354.0 | 372.1 | |
| 0.00 | 1.14 | 0.00 | 0.91 | -13.44 | 58.14 | -47.97 | 112.81 | 0.7860 | -478.0 | -528.8 | |
| 0.53 | 1.67 | 0.42 | 1.34 | -13.26 | 57.68 | -48.43 | 112.40 | 0.7899 | -494.3 | -539.5 | |
| 1.05 | 3.16 | 0.85 | 2.56 | -12.36 | 57.12 | -48.99 | 111.11 | 0.7923 | -410.8 | -452.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
