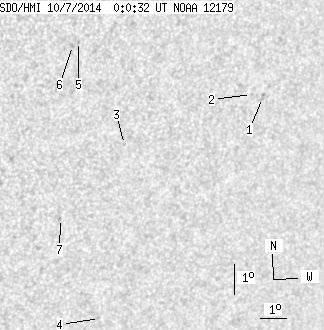

SDO HMI 2014-10-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.43 | 0.00 | 5.40 | -13.59 | 139.42 | 33.87 | 239.04 | 0.6334 | -296.3 | -93.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.76 | -13.28 | 143.06 | 37.51 | 242.03 | 0.6733 | 388.0 | 456.2 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -13.15 | 142.61 | 37.06 | 241.92 | 0.6674 | 650.0 | 557.9 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -14.43 | 138.05 | 32.49 | 236.90 | 0.6233 | -642.0 | -567.1 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -20.12 | 138.24 | 32.69 | 229.69 | 0.6674 | -554.0 | -499.6 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -11.04 | 135.92 | 30.37 | 240.11 | 0.5744 | -514.0 | -535.1 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -11.16 | 135.72 | 30.17 | 239.77 | 0.5728 | -726.0 | -586.2 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -16.69 | 136.09 | 30.54 | 232.18 | 0.6184 | -676.0 | -548.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
