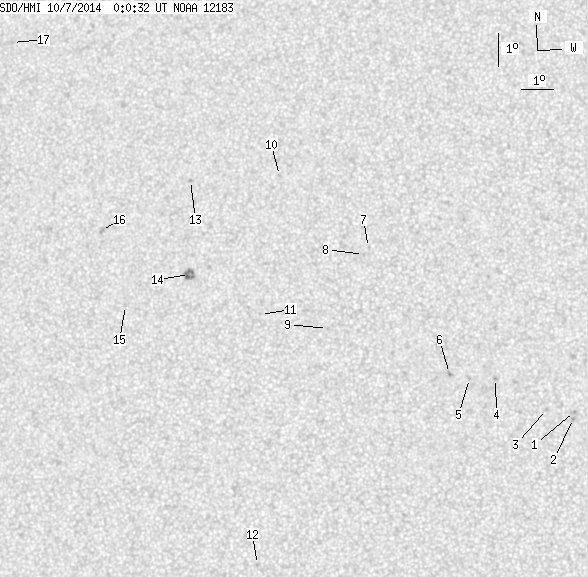

SDO HMI 2014-10-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.55 | 0.00 | 15.73 | 12.93 | 92.09 | -13.47 | 61.98 | 0.2573 | -210.5 | 202.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.57 | 101.55 | -4.01 | 51.39 | 0.0886 | -885.0 | -763.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.36 | 101.52 | -4.04 | 53.51 | 0.0868 | -951.0 | -820.5 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 9.62 | 100.69 | -4.86 | 56.13 | 0.1011 | -752.0 | -498.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 10.54 | 99.12 | -6.44 | 56.72 | 0.1324 | -1003.0 | -776.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 10.53 | 98.32 | -7.23 | 59.70 | 0.1441 | -876.0 | -578.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.67 | 97.70 | -7.85 | 60.82 | 0.1545 | -1136.0 | -968.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.42 | 95.05 | -10.50 | 51.40 | 0.2269 | -854.0 | -682.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 14.21 | 94.91 | -10.65 | 52.54 | 0.2267 | -839.0 | -638.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.96 | 93.88 | -11.68 | 63.53 | 0.2222 | -899.0 | -648.6 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 16.55 | 92.10 | -13.45 | 51.31 | 0.2870 | 781.0 | 617.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 12.33 | 91.76 | -13.80 | 65.55 | 0.2571 | 566.0 | 536.4 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 4.83 | 91.93 | -13.63 | 96.02 | 0.2371 | -807.0 | -599.4 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 16.32 | 89.24 | -16.31 | 56.85 | 0.3234 | 853.0 | 709.9 | |
| 0.00 | 9.04 | 0.00 | 4.69 | 13.47 | 89.43 | -16.13 | 64.83 | 0.2998 | 1177.0 | 987.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.47 | 87.44 | -18.12 | 69.96 | 0.3246 | 703.0 | 575.5 | |
| 0.00 | 2.90 | 0.00 | 1.53 | 14.71 | 86.48 | -19.08 | 64.62 | 0.3515 | 784.0 | 654.2 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 20.33 | 82.81 | -22.75 | 55.59 | 0.4414 | 560.0 | 434.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
