SDO HMI 2014-10-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.82 | 19.03 | 2.16 | 14.57 | -13.26 | 59.82 | -45.73 | 113.58 | 0.7625 | 75.9 | 265.0 | |
|
previous
or next observation for the same group /

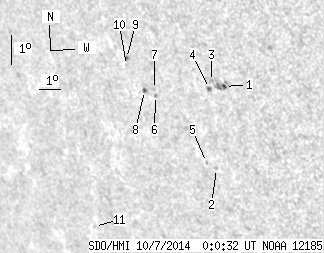

back to the solar disc SDO HMI 2014-10-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 7.37 | 0.71 | 5.47 | -12.87 | 61.33 | -44.22 | 113.78 | 0.7453 | 721.4 | 625.7 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -15.57 | 60.30 | -45.26 | 116.60 | 0.7675 | 518.0 | 414.7 | |
| 0.00 | 1.67 | 0.00 | 1.25 | -12.76 | 60.80 | -44.76 | 113.39 | 0.7505 | 657.0 | 582.7 | |
| 0.53 | 2.19 | 0.40 | 1.65 | -12.99 | 60.66 | -44.90 | 113.61 | 0.7530 | 577.5 | 443.3 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -15.41 | 59.90 | -45.66 | 116.21 | 0.7708 | 411.0 | 313.0 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -13.42 | 58.14 | -47.42 | 113.02 | 0.7804 | -664.0 | -609.3 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -13.23 | 58.14 | -47.41 | 112.80 | 0.7797 | -139.0 | -132.3 | |
| 0.88 | 1.84 | 0.70 | 1.47 | -13.30 | 57.66 | -47.89 | 112.68 | 0.7847 | -697.9 | -609.7 | |
| 0.44 | 1.58 | 0.35 | 1.26 | -12.35 | 57.08 | -48.48 | 111.29 | 0.7872 | -633.4 | -500.5 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -12.57 | 57.02 | -48.53 | 111.54 | 0.7885 | -350.0 | -394.0 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -18.02 | 53.64 | -51.91 | 116.49 | 0.8384 | 437.0 | 433.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
