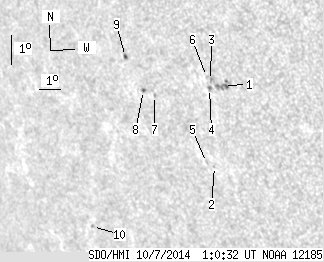

SDO HMI 2014-10-07 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 19.22 | 1.03 | 14.54 | -13.24 | 59.75 | -45.26 | 113.77 | 0.7572 | 209.3 | 370.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.34 | 0.00 | 6.12 | -12.87 | 61.30 | -43.71 | 114.02 | 0.7398 | 669.0 | 654.8 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -15.53 | 60.24 | -44.76 | 116.79 | 0.7624 | 423.0 | 450.3 | |
| 0.00 | 1.58 | 0.00 | 1.17 | -12.75 | 60.77 | -44.24 | 113.62 | 0.7450 | 709.0 | 602.7 | |
| 0.00 | 1.93 | 0.00 | 1.43 | -13.01 | 60.66 | -44.34 | 113.90 | 0.7472 | 673.0 | 501.1 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -15.43 | 59.92 | -45.09 | 116.51 | 0.7652 | 505.0 | 455.0 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -12.64 | 60.62 | -44.39 | 113.41 | 0.7461 | 516.0 | 463.7 | |
| 0.00 | 1.23 | 0.00 | 0.96 | -13.44 | 58.13 | -46.88 | 113.28 | 0.7751 | -658.0 | -529.1 | |
| 0.53 | 1.49 | 0.41 | 1.17 | -13.33 | 57.66 | -47.35 | 112.93 | 0.7794 | -651.0 | -580.4 | |
| 0.79 | 2.11 | 0.62 | 1.67 | -12.30 | 57.09 | -47.91 | 111.46 | 0.7814 | -387.2 | -339.8 | |
| 0.00 | 0.79 | 0.00 | 0.70 | -18.04 | 53.64 | -51.36 | 116.74 | 0.8338 | 420.0 | 377.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
