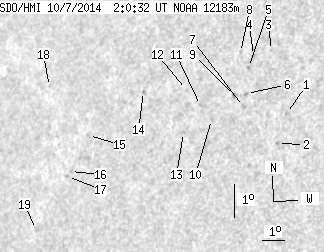

SDO HMI 2014-10-07 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.16 | 0.00 | 16.84 | 12.54 | 57.25 | -47.20 | 78.68 | 0.7315 | 33.7 | 31.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.88 | 13.19 | 62.04 | -42.42 | 77.44 | 0.6752 | -486.0 | -427.3 | |
| 0.00 | 1.40 | 0.00 | 0.94 | 12.26 | 61.85 | -42.60 | 78.83 | 0.6766 | -613.0 | -542.1 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 15.03 | 60.97 | -43.48 | 74.90 | 0.6907 | -308.0 | -397.0 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 14.82 | 60.25 | -44.21 | 75.31 | 0.6992 | -718.0 | -545.7 | |
| 0.00 | 1.14 | 0.00 | 0.79 | 14.45 | 60.13 | -44.33 | 75.86 | 0.7001 | -651.0 | -552.0 | |
| 0.00 | 1.58 | 0.00 | 1.09 | 13.66 | 60.23 | -44.22 | 76.97 | 0.6980 | -606.0 | -492.2 | |
| 0.00 | 2.28 | 0.00 | 1.57 | 13.26 | 60.20 | -44.26 | 77.54 | 0.6980 | -451.0 | -420.8 | |
| 0.00 | 1.23 | 0.00 | 0.86 | 14.87 | 59.67 | -44.79 | 75.32 | 0.7062 | -493.0 | -334.2 | |
| 0.00 | 1.58 | 0.00 | 1.10 | 13.56 | 59.73 | -44.72 | 77.17 | 0.7039 | -434.0 | -374.7 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 12.77 | 58.91 | -45.54 | 78.37 | 0.7130 | 724.0 | 564.2 | |
| 0.00 | 1.40 | 0.00 | 1.00 | 13.15 | 58.34 | -46.12 | 77.89 | 0.7202 | 675.0 | 621.0 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 13.58 | 57.60 | -46.86 | 77.36 | 0.7292 | 583.0 | 514.7 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 12.29 | 57.78 | -46.68 | 79.13 | 0.7261 | 540.0 | 440.9 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 13.37 | 55.67 | -48.78 | 77.82 | 0.7510 | 495.0 | 428.5 | |
| 0.00 | 1.67 | 0.00 | 1.30 | 11.84 | 53.44 | -51.01 | 79.93 | 0.7749 | 154.0 | 262.3 | |
| 0.00 | 0.88 | 0.00 | 0.69 | 10.70 | 52.84 | -51.61 | 81.42 | 0.7812 | 624.0 | 494.7 | |
| 0.00 | 1.05 | 0.00 | 0.83 | 10.53 | 52.73 | -51.72 | 81.63 | 0.7824 | 639.0 | 569.2 | |
| 0.00 | 0.88 | 0.00 | 0.72 | 13.13 | 51.11 | -53.34 | 78.37 | 0.7999 | 400.0 | 338.4 | |
| 0.00 | 2.37 | 0.00 | 1.93 | 8.83 | 51.55 | -52.90 | 83.78 | 0.7951 | 567.0 | 481.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
