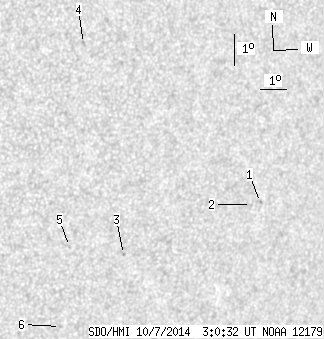

SDO HMI 2014-10-07 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.50 | 0.00 | 4.19 | -12.49 | 138.66 | 34.75 | 241.35 | 0.6366 | -267.7 | -187.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.66 | -13.22 | 143.07 | 39.16 | 243.12 | 0.6916 | 527.0 | 524.3 | |
| 0.00 | 1.23 | 0.00 | 0.84 | -13.26 | 142.72 | 38.81 | 242.86 | 0.6878 | 594.0 | 512.2 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -14.52 | 138.02 | 34.11 | 238.04 | 0.6422 | -689.0 | -601.1 | |
| 0.00 | 1.84 | 0.00 | 1.11 | -7.75 | 135.69 | 31.79 | 246.39 | 0.5718 | -758.0 | -614.7 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -14.13 | 135.95 | 32.05 | 236.98 | 0.6160 | -578.0 | -531.0 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -16.71 | 136.07 | 32.16 | 233.57 | 0.6360 | -702.0 | -535.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
