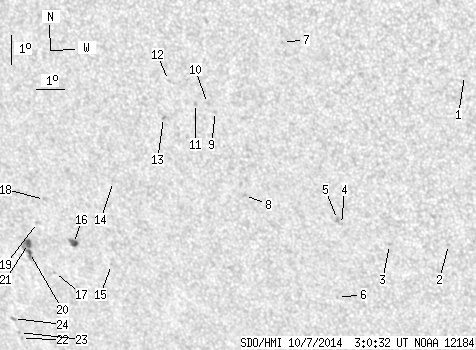

SDO HMI 2014-10-07 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.43 | 46.90 | 5.82 | 30.99 | -20.87 | 72.57 | -31.34 | 132.69 | 0.6587 | 123.3 | -22.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.59 | -15.44 | 85.53 | -18.37 | 140.36 | 0.4782 | 840.0 | 669.0 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -21.06 | 84.35 | -19.56 | 145.55 | 0.5543 | 478.0 | 380.5 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -21.14 | 82.31 | -21.59 | 142.98 | 0.5724 | 694.0 | 549.0 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -20.53 | 80.74 | -23.16 | 140.37 | 0.5797 | 674.0 | 543.4 | |
| 0.00 | 2.28 | 0.00 | 1.38 | -20.37 | 80.63 | -23.28 | 140.04 | 0.5790 | 834.0 | 719.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -23.04 | 80.16 | -23.75 | 142.51 | 0.6110 | 647.0 | 530.8 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -14.63 | 79.55 | -24.36 | 131.21 | 0.5325 | 674.0 | 564.6 | |
| 0.00 | 1.76 | 0.00 | 1.09 | -19.73 | 77.47 | -26.44 | 135.70 | 0.6024 | 677.0 | 530.2 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -16.99 | 76.90 | -27.00 | 131.60 | 0.5829 | 567.0 | 540.7 | |
| 0.00 | 1.76 | 0.00 | 1.07 | -16.74 | 76.66 | -27.25 | 131.02 | 0.5833 | 531.0 | 518.8 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -16.76 | 76.23 | -27.67 | 130.62 | 0.5881 | 623.0 | 494.8 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -16.06 | 75.39 | -28.52 | 128.83 | 0.5912 | 639.0 | 599.5 | |
| 0.00 | 1.58 | 0.00 | 0.98 | -17.29 | 75.00 | -28.90 | 130.11 | 0.6056 | 762.0 | 675.6 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -19.52 | 72.74 | -31.17 | 130.88 | 0.6474 | -784.0 | -626.5 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -22.36 | 71.99 | -31.92 | 133.61 | 0.6776 | 468.0 | 396.6 | |
| 3.51 | 5.62 | 2.38 | 3.81 | -21.73 | 70.69 | -33.21 | 131.79 | 0.6847 | 739.7 | 432.6 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -22.78 | 69.66 | -34.24 | 132.17 | 0.7023 | -563.0 | -480.4 | |
| 0.00 | 1.67 | 0.00 | 1.13 | -20.30 | 69.94 | -33.96 | 129.48 | 0.6812 | -700.0 | -465.7 | |
| 0.00 | 1.58 | 0.00 | 1.08 | -21.10 | 69.46 | -34.44 | 130.06 | 0.6918 | -665.0 | -583.2 | |
| 1.23 | 13.35 | 0.86 | 9.29 | -22.15 | 68.85 | -35.05 | 130.82 | 0.7052 | -858.1 | -667.6 | |
| 3.34 | -20.00 | 2.32 | -20.00 | -21.85 | 68.90 | -35.00 | 130.50 | 0.7025 | -936.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.90 | -25.20 | 67.56 | -36.35 | 133.26 | 0.7386 | -559.0 | -438.7 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -24.99 | 67.55 | -36.35 | 133.02 | 0.7372 | -603.0 | -524.9 | |
| 0.35 | 2.20 | 0.26 | 1.60 | -24.51 | 67.47 | -36.44 | 132.43 | 0.7345 | -617.2 | -463.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
