SDO HMI 2014-10-07 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 22.30 | 0.68 | 16.63 | -13.14 | 59.44 | -44.46 | 114.02 | 0.7485 | 210.4 | 220.0 | |
|
previous
or next observation for the same group /

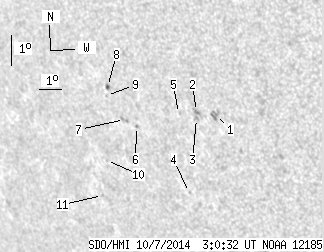

back to the solar disc SDO HMI 2014-10-07 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.76 | 0.00 | 4.84 | -12.79 | 61.64 | -42.26 | 114.63 | 0.7238 | 920.0 | 647.3 | |
| 0.00 | 3.25 | 0.00 | 2.36 | -12.76 | 60.85 | -43.05 | 114.19 | 0.7323 | 654.0 | 562.3 | |
| 0.00 | 1.84 | 0.00 | 1.34 | -12.99 | 60.80 | -43.10 | 114.45 | 0.7338 | 773.0 | 581.6 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -15.41 | 59.91 | -43.99 | 117.03 | 0.7540 | 580.0 | 465.4 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -12.89 | 60.06 | -43.85 | 113.97 | 0.7413 | 386.0 | 375.0 | |
| 0.00 | 1.05 | 0.00 | 0.81 | -13.46 | 58.09 | -45.81 | 113.76 | 0.7642 | -720.0 | -559.6 | |
| 0.00 | 3.51 | 0.00 | 2.71 | -13.28 | 57.60 | -46.30 | 113.32 | 0.7685 | -626.0 | -558.9 | |
| 0.88 | 2.20 | 0.68 | 1.70 | -12.28 | 57.08 | -46.82 | 111.87 | 0.7701 | -602.2 | -474.8 | |
| 0.00 | 0.97 | 0.00 | 0.75 | -12.57 | 56.97 | -46.94 | 112.18 | 0.7724 | -346.0 | -298.7 | |
| 0.00 | 0.70 | 0.00 | 0.56 | -14.68 | 56.41 | -47.50 | 114.49 | 0.7859 | 499.0 | 475.0 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -15.84 | 55.87 | -48.04 | 115.63 | 0.7956 | 537.0 | 427.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
