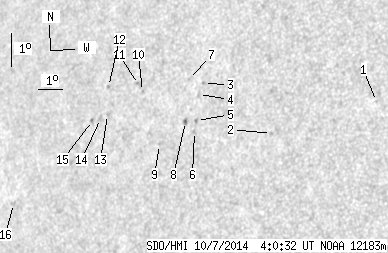

SDO HMI 2014-10-07 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 23.72 | 0.36 | 16.65 | 13.51 | 58.14 | -45.22 | 77.19 | 0.7092 | -127.7 | -40.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.43 | 14.71 | 67.28 | -36.08 | 73.84 | 0.5953 | -619.0 | -557.2 | |
| 0.00 | 1.41 | 0.00 | 0.91 | 13.48 | 63.39 | -39.97 | 76.64 | 0.6444 | -633.0 | -548.1 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 14.78 | 60.28 | -43.08 | 75.19 | 0.6854 | -670.0 | -607.3 | |
| 0.00 | 1.41 | 0.00 | 0.95 | 14.43 | 60.15 | -43.21 | 75.71 | 0.6865 | -504.0 | -456.8 | |
| 0.00 | 1.67 | 0.00 | 1.13 | 13.65 | 60.25 | -43.11 | 76.84 | 0.6843 | -623.0 | -514.3 | |
| 0.00 | 1.58 | 0.00 | 1.07 | 13.31 | 60.24 | -43.12 | 77.33 | 0.6841 | -452.0 | -418.8 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 14.85 | 59.62 | -43.74 | 75.18 | 0.6936 | -471.0 | -381.2 | |
| 0.53 | 2.11 | 0.36 | 1.44 | 13.58 | 59.80 | -43.56 | 76.99 | 0.6898 | -412.2 | -315.2 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 12.81 | 58.85 | -44.51 | 78.20 | 0.7006 | 723.0 | 603.2 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 14.34 | 57.74 | -45.62 | 76.16 | 0.7155 | -599.0 | -402.0 | |
| 0.00 | 2.02 | 0.00 | 1.43 | 14.54 | 57.51 | -45.85 | 75.92 | 0.7184 | -561.0 | -428.9 | |
| 0.00 | 1.05 | 0.00 | 0.77 | 14.38 | 56.20 | -47.16 | 76.30 | 0.7334 | 582.0 | 477.7 | |
| 0.00 | 1.67 | 0.00 | 1.21 | 13.54 | 56.38 | -46.98 | 77.43 | 0.7306 | 670.0 | 542.3 | |
| 0.00 | 2.55 | 0.00 | 1.85 | 13.39 | 56.10 | -47.26 | 77.65 | 0.7338 | 520.0 | 381.2 | |
| 0.00 | 1.67 | 0.00 | 1.22 | 13.30 | 55.75 | -47.61 | 77.80 | 0.7376 | 414.0 | 393.7 | |
| 0.00 | 2.11 | 0.00 | 1.63 | 10.53 | 52.71 | -50.65 | 81.62 | 0.7708 | 694.0 | 528.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
