SDO HMI 2014-10-07 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.72 | 0.00 | 4.47 | -8.71 | 75.87 | -26.94 | 119.07 | 0.5148 | 230.3 | 178.4 | |
|
previous
or next observation for the same group /

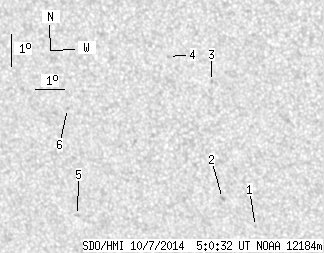

back to the solar disc SDO HMI 2014-10-07 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.35 | -10.75 | 78.91 | -23.90 | 125.67 | 0.4918 | 663.0 | 546.7 | |
| 0.00 | 2.02 | 0.00 | 1.15 | -9.93 | 77.88 | -24.93 | 123.13 | 0.4978 | 870.0 | 696.9 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -6.31 | 77.76 | -25.05 | 116.49 | 0.4722 | 692.0 | 548.5 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -5.62 | 76.35 | -26.46 | 113.91 | 0.4870 | 675.0 | 560.0 | |
| 0.00 | 1.84 | 0.00 | 1.11 | -10.72 | 72.81 | -29.99 | 119.67 | 0.5675 | -860.0 | -588.3 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -7.40 | 72.78 | -30.03 | 114.27 | 0.5466 | -658.0 | -552.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
