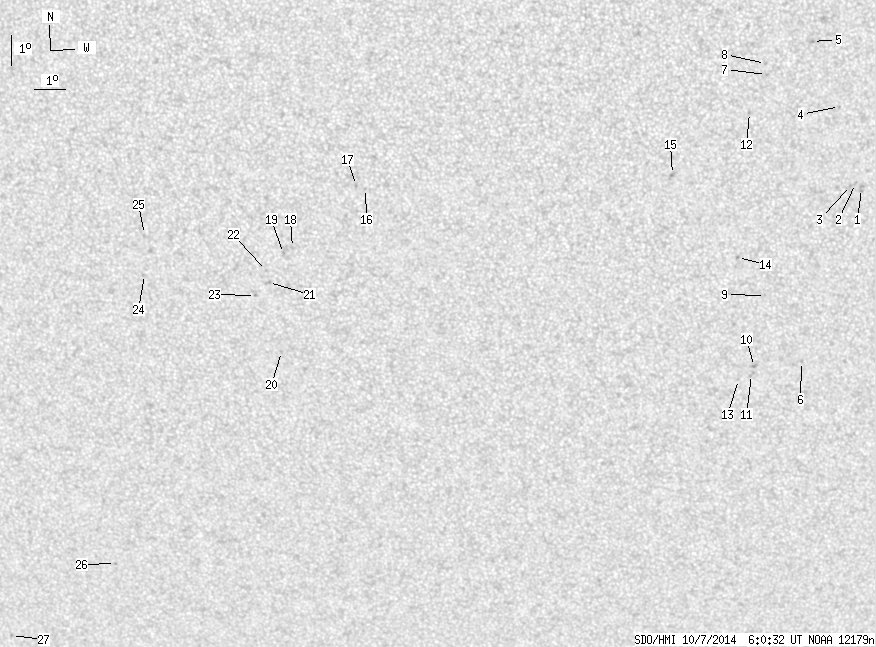

SDO HMI 2014-10-07 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 35.21 | 0.00 | 19.59 | -18.80 | 102.68 | 0.42 | 182.60 | 0.4488 | 109.5 | 136.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.25 | 0.00 | 1.78 | -16.52 | 112.26 | 9.99 | 203.23 | 0.4237 | 636.0 | 657.2 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -16.35 | 112.06 | 9.80 | 202.97 | 0.4201 | 773.0 | 554.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -16.41 | 111.90 | 9.64 | 202.59 | 0.4200 | 820.0 | 539.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.86 | 111.44 | 9.18 | 204.19 | 0.3797 | 752.0 | 630.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -11.78 | 110.53 | 8.27 | 204.38 | 0.3427 | 811.0 | 661.1 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -22.25 | 110.64 | 8.38 | 195.75 | 0.4990 | 754.0 | 635.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -12.80 | 109.14 | 6.88 | 199.59 | 0.3497 | 748.0 | 618.3 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -12.45 | 109.10 | 6.84 | 199.83 | 0.3441 | 704.0 | 572.6 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -19.99 | 109.36 | 7.10 | 194.67 | 0.4605 | 627.0 | 467.7 | |
| 0.00 | 1.76 | 0.00 | 1.00 | -22.39 | 109.12 | 6.85 | 192.92 | 0.4954 | 988.0 | 824.7 | |
| 0.00 | 2.37 | 0.00 | 1.35 | -22.67 | 109.03 | 6.77 | 192.64 | 0.4991 | 580.0 | 612.8 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.00 | 108.64 | 6.38 | 197.22 | 0.3658 | 777.0 | 567.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -22.83 | 108.61 | 6.35 | 191.81 | 0.5002 | 784.0 | 628.4 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -18.71 | 108.41 | 6.15 | 193.47 | 0.4376 | 829.0 | 628.3 | |
| 0.00 | 1.93 | 0.00 | 1.04 | -15.97 | 106.29 | 4.03 | 190.07 | 0.3879 | 831.0 | 766.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.43 | 96.70 | -5.57 | 166.50 | 0.4001 | -704.0 | -592.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -16.33 | 96.42 | -5.85 | 165.78 | 0.3997 | -760.0 | -660.2 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -18.39 | 94.31 | -7.95 | 162.57 | 0.4402 | -606.0 | -525.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -18.59 | 94.01 | -8.25 | 162.11 | 0.4447 | -923.0 | -775.8 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -21.89 | 93.76 | -8.50 | 163.82 | 0.4942 | -936.0 | -761.6 | |
| 0.00 | 2.55 | 0.00 | 1.42 | -19.57 | 93.48 | -8.78 | 161.76 | 0.4616 | -813.0 | -624.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -19.17 | 93.44 | -8.82 | 161.39 | 0.4559 | -802.0 | -642.5 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -20.01 | 93.04 | -9.23 | 161.23 | 0.4702 | -760.0 | -621.4 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -19.38 | 89.48 | -12.78 | 154.23 | 0.4821 | -476.0 | -357.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -18.06 | 89.58 | -12.68 | 153.10 | 0.4632 | -346.0 | -417.4 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -29.55 | 87.33 | -14.93 | 158.99 | 0.6276 | -627.0 | -558.6 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -32.42 | 82.98 | -19.28 | 155.85 | 0.6835 | -704.0 | -571.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
