SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.95 | 194.44 | 30.23 | 168.63 | -1.84 | 155.68 | 54.51 | 263.24 | 0.8217 | 861.0 | 222.0 | |
|
previous
or next observation for the same group /

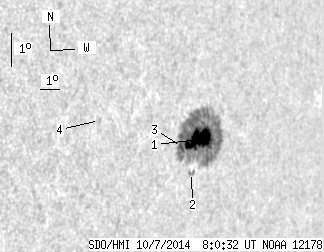

back to the solar disc SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.88 | 189.61 | 27.62 | 164.61 | -1.82 | 155.80 | 54.63 | 263.29 | 0.8229 | 922.5 | 224.9 | |
| 0.00 | 3.16 | 0.00 | 2.73 | -2.78 | 155.44 | 54.27 | 262.06 | 0.8209 | 464.0 | 369.9 | |
| 3.07 | -1.00 | 2.61 | -1.00 | -1.94 | 154.88 | 53.71 | 262.96 | 0.8139 | 860.9 | 999999 | |
| 0.00 | 1.67 | 0.00 | 1.29 | -0.80 | 150.85 | 49.69 | 263.58 | 0.7695 | -440.0 | -384.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
