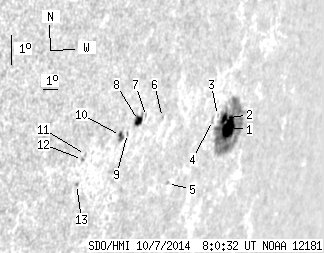

SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.92 | 129.97 | 35.51 | 168.00 | -12.38 | 166.22 | 65.06 | 253.69 | 0.9236 | 235.3 | 30.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.92 | 106.62 | 24.01 | 143.05 | -12.49 | 167.21 | 66.04 | 253.81 | 0.9306 | 491.3 | 68.7 | |
| 3.86 | -1.00 | 5.06 | -1.00 | -12.16 | 166.74 | 65.58 | 254.05 | 0.9273 | 795.3 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.79 | -12.01 | 166.15 | 64.98 | 254.08 | 0.9234 | 430.0 | 488.6 | |
| 0.00 | 2.11 | 0.00 | 2.66 | -12.13 | 165.84 | 64.68 | 253.88 | 0.9215 | 622.0 | 548.1 | |
| 0.00 | 1.05 | 0.00 | 1.24 | -13.87 | 163.52 | 62.35 | 251.46 | 0.9088 | -468.0 | -374.2 | |
| 0.00 | 1.05 | 0.00 | 1.17 | -11.67 | 162.26 | 61.09 | 253.51 | 0.8959 | 155.0 | 171.7 | |
| 0.00 | 0.61 | 0.00 | 0.66 | -11.54 | 161.20 | 60.03 | 253.39 | 0.8877 | -175.0 | -191.0 | |
| 5.09 | 8.17 | 5.36 | 8.60 | -11.61 | 160.74 | 59.57 | 253.18 | 0.8843 | -590.1 | -355.4 | |
| 0.00 | 1.32 | 0.00 | 1.37 | -11.97 | 160.20 | 59.03 | 252.65 | 0.8807 | -330.0 | -297.9 | |
| 1.05 | 4.74 | 1.08 | 4.87 | -11.99 | 159.79 | 58.62 | 252.51 | 0.8775 | -550.8 | -460.7 | |
| 0.00 | 0.79 | 0.00 | 0.77 | -12.40 | 157.91 | 56.74 | 251.52 | 0.8631 | -522.0 | -521.4 | |
| 0.00 | 1.49 | 0.00 | 1.45 | -12.55 | 157.79 | 56.62 | 251.32 | 0.8625 | -691.0 | -567.2 | |
| 0.00 | 1.41 | 0.00 | 1.37 | -13.33 | 157.72 | 56.55 | 250.43 | 0.8638 | -612.0 | -521.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
