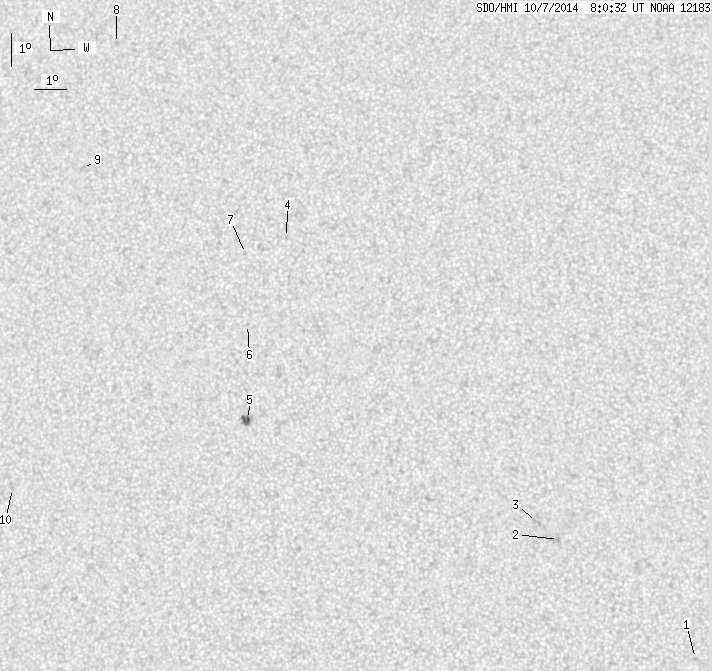

SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 22.84 | 0.67 | 11.72 | 14.60 | 91.06 | -10.11 | 65.57 | 0.2310 | 70.8 | 196.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 0.96 | 6.44 | 103.34 | 2.17 | 271.49 | 0.0379 | -796.0 | -482.0 | |
| 0.00 | 1.76 | 0.00 | 0.87 | 10.01 | 99.20 | -1.97 | 28.15 | 0.0721 | -923.0 | -746.2 | |
| 0.00 | 3.25 | 0.00 | 1.62 | 10.55 | 98.52 | -2.64 | 31.96 | 0.0861 | -976.0 | -764.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 19.07 | 90.44 | -10.73 | 38.47 | 0.2840 | 837.0 | 574.2 | |
| 1.32 | 7.20 | 0.67 | 3.67 | 13.51 | 89.55 | -11.62 | 57.20 | 0.2341 | 1221.7 | 1017.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 16.39 | 89.36 | -11.81 | 48.14 | 0.2648 | 669.0 | 439.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 18.55 | 89.15 | -12.02 | 42.81 | 0.2917 | 711.0 | 574.9 | |
| 0.00 | 1.93 | 0.00 | 1.05 | 24.97 | 84.19 | -16.98 | 39.34 | 0.4194 | 647.0 | 581.6 | |
| 0.00 | 2.46 | 0.00 | 1.32 | 21.03 | 83.55 | -17.62 | 47.64 | 0.3841 | 538.0 | 338.5 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 11.23 | 82.17 | -19.00 | 74.21 | 0.3334 | -841.0 | -593.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
