SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.62 | 41.77 | 3.72 | 26.91 | -20.95 | 72.18 | -28.99 | 134.83 | 0.6369 | 54.5 | -79.0 | |
|
previous
or next observation for the same group /

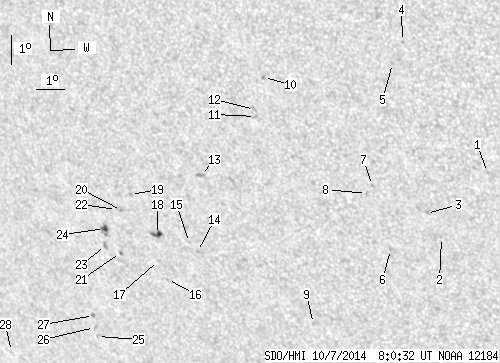

back to the solar disc SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.36 | -19.00 | 82.85 | -18.32 | 144.94 | 0.5193 | 588.0 | 486.6 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -21.25 | 81.01 | -20.16 | 144.92 | 0.5612 | 443.0 | 417.1 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -20.45 | 80.61 | -20.56 | 143.51 | 0.5555 | 720.0 | 650.0 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -14.82 | 80.48 | -20.69 | 136.10 | 0.4944 | 634.0 | 551.6 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.55 | 80.07 | -21.09 | 136.57 | 0.5064 | 619.0 | 527.4 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -21.73 | 79.17 | -22.00 | 143.12 | 0.5820 | 627.0 | 496.7 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -19.59 | 78.88 | -22.29 | 140.29 | 0.5614 | 593.0 | 539.9 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -19.87 | 78.63 | -22.54 | 140.31 | 0.5667 | 633.0 | 516.3 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -24.42 | 75.92 | -25.25 | 142.30 | 0.6374 | 509.0 | 405.3 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -16.20 | 75.61 | -25.56 | 132.04 | 0.5601 | 860.0 | 767.2 | |
| 0.00 | 1.58 | 0.00 | 0.96 | -17.49 | 75.14 | -26.03 | 133.27 | 0.5770 | 634.0 | 544.3 | |
| 0.00 | 2.02 | 0.00 | 1.22 | -17.26 | 75.14 | -26.03 | 132.97 | 0.5749 | 675.0 | 570.7 | |
| 0.00 | 3.16 | 0.00 | 1.99 | -19.56 | 72.82 | -28.35 | 133.52 | 0.6193 | -908.0 | -650.9 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -22.15 | 72.17 | -29.00 | 135.98 | 0.6486 | 665.0 | 551.7 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -21.86 | 71.94 | -29.23 | 135.43 | 0.6481 | 698.0 | 624.0 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -23.18 | 70.79 | -30.38 | 135.89 | 0.6701 | -272.0 | -299.0 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -22.54 | 70.61 | -30.56 | 135.00 | 0.6663 | -598.0 | -509.1 | |
| 3.07 | 5.27 | 2.01 | 3.45 | -21.65 | 70.79 | -30.38 | 134.12 | 0.6571 | 710.6 | 475.0 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -20.35 | 70.08 | -31.09 | 131.93 | 0.6531 | -763.0 | -554.5 | |
| 0.00 | 1.23 | 0.00 | 0.81 | -20.91 | 69.61 | -31.56 | 132.20 | 0.6622 | -694.0 | -615.8 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -22.36 | 69.22 | -31.95 | 133.55 | 0.6776 | -675.0 | -629.1 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -20.89 | 69.43 | -31.74 | 132.01 | 0.6638 | -619.0 | -509.5 | |
| 0.00 | 2.63 | 0.00 | 1.78 | -22.15 | 68.69 | -32.47 | 132.87 | 0.6809 | -649.0 | -592.7 | |
| 2.55 | 6.32 | 1.71 | 4.24 | -21.57 | 68.81 | -32.36 | 132.28 | 0.6752 | -833.3 | -653.8 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -25.37 | 67.45 | -33.72 | 135.44 | 0.7172 | -427.0 | -368.7 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -25.05 | 67.43 | -33.74 | 135.08 | 0.7150 | -607.0 | -481.0 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -24.63 | 67.52 | -33.65 | 134.69 | 0.7109 | -709.0 | -612.6 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -26.15 | 63.64 | -37.53 | 133.41 | 0.7550 | -360.0 | -443.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
