SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.76 | 0.00 | 3.86 | -9.58 | 76.32 | -24.84 | 122.49 | 0.4953 | 142.2 | 129.7 | |
|
previous
or next observation for the same group /

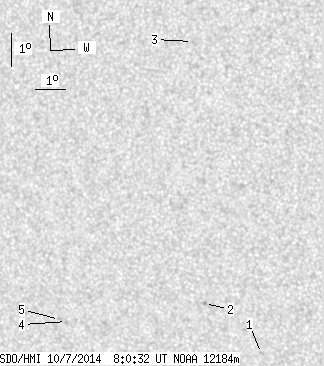

back to the solar disc SDO HMI 2014-10-07 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 0.99 | -11.49 | 79.54 | -21.63 | 129.64 | 0.4711 | 695.0 | 513.4 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -10.00 | 77.77 | -23.40 | 124.93 | 0.4790 | 808.0 | 705.2 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -1.96 | 77.76 | -23.41 | 108.91 | 0.4216 | 746.0 | 600.3 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -10.80 | 73.02 | -28.14 | 121.37 | 0.5448 | -773.0 | -620.8 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -10.75 | 72.79 | -28.38 | 121.08 | 0.5474 | -765.0 | -600.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
