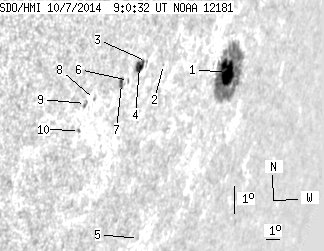

SDO HMI 2014-10-07 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.20 | 129.25 | 39.15 | 170.88 | -12.42 | 166.24 | 65.62 | 253.77 | 0.9272 | 231.8 | 14.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.09 | 107.92 | 31.57 | 148.34 | -12.45 | 167.17 | 66.55 | 253.96 | 0.9337 | 523.9 | 55.4 | |
| 0.00 | 0.79 | 0.00 | 0.89 | -11.70 | 162.29 | 61.67 | 253.63 | 0.9002 | 216.0 | 209.6 | |
| 0.00 | 1.05 | 0.00 | 1.14 | -11.49 | 161.13 | 60.51 | 253.57 | 0.8912 | -82.0 | -148.7 | |
| 5.62 | 8.25 | 6.02 | 8.84 | -11.60 | 160.73 | 60.11 | 253.34 | 0.8884 | -594.3 | -387.7 | |
| 0.00 | 0.97 | 0.00 | 1.19 | -17.32 | 163.40 | 62.78 | 247.92 | 0.9178 | 300.0 | 247.7 | |
| 0.00 | 1.23 | 0.00 | 1.30 | -11.99 | 160.20 | 59.58 | 252.78 | 0.8850 | -305.0 | -258.5 | |
| 1.49 | 3.95 | 1.56 | 4.12 | -12.04 | 159.79 | 59.17 | 252.61 | 0.8820 | -536.6 | -416.5 | |
| 0.00 | 1.32 | 0.00 | 1.32 | -12.40 | 158.32 | 57.70 | 251.80 | 0.8710 | -383.0 | -285.0 | |
| 0.00 | 2.72 | 0.00 | 2.69 | -12.48 | 157.83 | 57.21 | 251.57 | 0.8672 | -616.0 | -548.0 | |
| 0.00 | 1.05 | 0.00 | 1.05 | -13.32 | 157.79 | 57.17 | 250.62 | 0.8688 | -555.0 | -508.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
