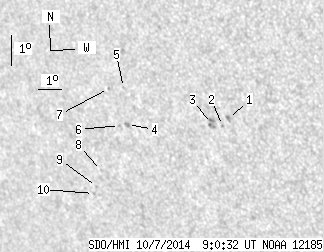

SDO HMI 2014-10-07 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.52 | 0.00 | 11.69 | -13.41 | 59.36 | -41.26 | 115.96 | 0.7150 | 182.5 | 280.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.55 | 0.00 | 1.73 | -12.81 | 61.88 | -38.74 | 116.55 | 0.6845 | 896.0 | 714.9 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -13.05 | 61.60 | -39.02 | 116.71 | 0.6889 | 613.0 | 488.2 | |
| 0.00 | 5.80 | 0.00 | 3.97 | -13.02 | 61.17 | -39.45 | 116.42 | 0.6936 | 702.0 | 614.2 | |
| 0.00 | 2.46 | 0.00 | 1.79 | -13.32 | 57.66 | -42.96 | 114.92 | 0.7336 | -689.0 | -594.4 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -12.14 | 57.74 | -42.88 | 113.46 | 0.7275 | -283.0 | -301.2 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -13.38 | 57.31 | -43.32 | 114.81 | 0.7376 | -389.0 | -376.8 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -12.23 | 57.09 | -43.53 | 113.25 | 0.7350 | -673.0 | -583.3 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -14.90 | 56.16 | -44.47 | 116.14 | 0.7563 | 470.0 | 383.1 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -15.44 | 55.79 | -44.83 | 116.62 | 0.7624 | 559.0 | 520.7 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -15.68 | 55.59 | -45.03 | 116.81 | 0.7655 | 619.0 | 467.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
