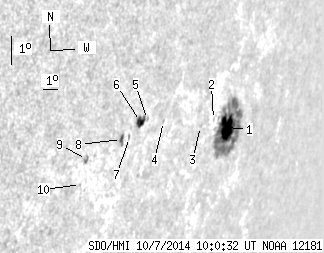

SDO HMI 2014-10-07 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.10 | 126.17 | 37.26 | 171.23 | -12.38 | 166.30 | 66.22 | 253.95 | 0.9309 | 229.2 | 17.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.34 | 105.36 | 29.93 | 148.56 | -12.45 | 167.17 | 67.09 | 254.09 | 0.9369 | 499.1 | 49.5 | |
| 0.00 | 0.70 | 0.00 | 0.93 | -12.07 | 165.97 | 65.89 | 254.22 | 0.9292 | 352.0 | 448.4 | |
| 0.00 | 0.97 | 0.00 | 1.24 | -12.19 | 165.06 | 64.98 | 253.89 | 0.9236 | 229.0 | 224.5 | |
| 0.00 | 1.05 | 0.00 | 1.21 | -11.75 | 162.29 | 62.21 | 253.71 | 0.9042 | 158.0 | 156.2 | |
| 0.00 | 0.97 | 0.00 | 1.07 | -11.58 | 161.18 | 61.11 | 253.62 | 0.8958 | -80.0 | -93.7 | |
| 5.36 | 7.99 | 5.84 | 8.71 | -11.60 | 160.74 | 60.67 | 253.49 | 0.8926 | -555.6 | -339.0 | |
| 0.00 | 1.49 | 0.00 | 1.60 | -12.05 | 160.22 | 60.15 | 252.87 | 0.8895 | -278.0 | -226.8 | |
| 1.40 | 4.13 | 1.49 | 4.38 | -12.06 | 159.73 | 59.66 | 252.72 | 0.8858 | -501.8 | -367.5 | |
| 0.00 | 2.81 | 0.00 | 2.82 | -12.50 | 157.81 | 57.73 | 251.70 | 0.8715 | -648.0 | -543.4 | |
| 0.00 | 0.70 | 0.00 | 0.71 | -13.28 | 157.74 | 57.67 | 250.82 | 0.8727 | -533.0 | -466.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
