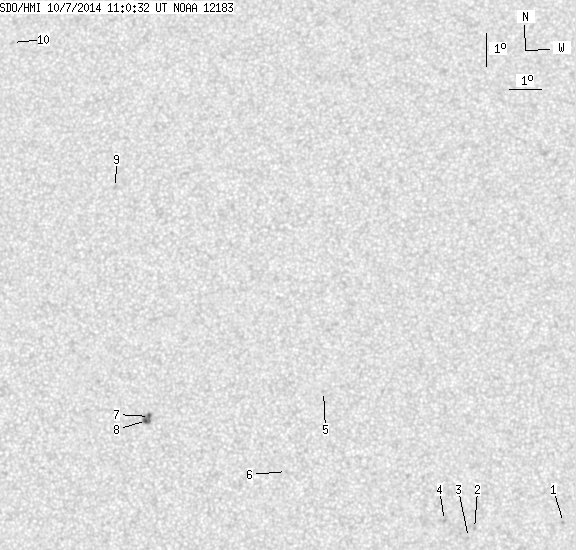

SDO HMI 2014-10-07 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.30 | 17.55 | 2.18 | 8.91 | 14.20 | 92.36 | -7.17 | 218.48 | 0.1915 | -146.2 | -15.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 10.44 | 102.31 | 2.78 | 326.11 | 0.0860 | -1032.0 | -810.0 | |
| 0.00 | 1.32 | 0.00 | 0.65 | 10.27 | 99.60 | 0.07 | 359.00 | 0.0683 | -944.0 | -738.7 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 10.00 | 99.41 | -0.11 | 1.77 | 0.0636 | -727.0 | -478.1 | |
| 0.00 | 1.93 | 0.00 | 0.96 | 10.51 | 98.68 | -0.84 | 11.35 | 0.0739 | -1061.0 | -793.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.38 | 94.93 | -4.60 | 29.07 | 0.1606 | -758.0 | -603.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 11.96 | 93.83 | -5.69 | 44.76 | 0.1385 | -859.0 | -724.2 | |
| 1.49 | 7.64 | 0.76 | 3.87 | 13.56 | 89.54 | -9.99 | 53.08 | 0.2119 | 1174.5 | 851.3 | |
| 2.81 | -7.00 | 1.42 | -7.00 | 13.44 | 89.45 | -10.08 | 53.79 | 0.2119 | 1108.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 20.52 | 88.05 | -11.47 | 37.08 | 0.3103 | 621.0 | 604.4 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 24.97 | 84.17 | -15.36 | 36.67 | 0.4037 | 805.0 | 649.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
