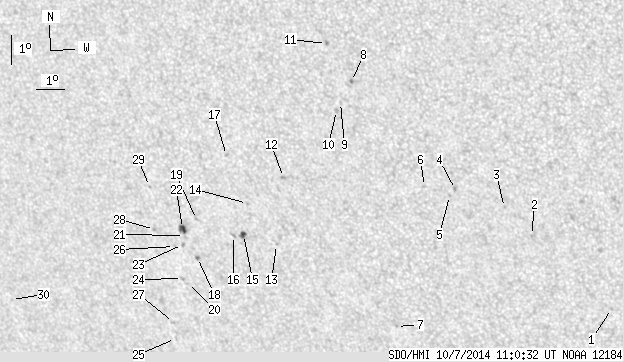

SDO HMI 2014-10-07 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.67 | 44.15 | 4.36 | 28.19 | -21.08 | 71.52 | -28.01 | 135.98 | 0.6293 | -59.3 | -49.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.73 | -23.52 | 83.56 | -15.96 | 152.98 | 0.5573 | 676.0 | 556.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -21.11 | 81.16 | -18.37 | 147.21 | 0.5449 | 562.0 | 493.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -20.20 | 80.36 | -19.16 | 145.10 | 0.5406 | 811.0 | 654.8 | |
| 0.00 | 1.58 | 0.00 | 0.93 | -19.66 | 78.77 | -20.75 | 142.33 | 0.5482 | 754.0 | 715.4 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -19.87 | 78.54 | -20.99 | 142.27 | 0.5526 | 658.0 | 530.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -19.61 | 77.72 | -21.81 | 140.90 | 0.5570 | 603.0 | 441.7 | |
| 0.00 | 1.32 | 0.00 | 0.83 | -24.45 | 75.91 | -23.62 | 144.10 | 0.6244 | 701.0 | 495.6 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -16.25 | 75.69 | -23.84 | 134.07 | 0.5422 | 857.0 | 762.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -16.96 | 75.22 | -24.31 | 134.47 | 0.5540 | 620.0 | 418.9 | |
| 0.00 | 2.11 | 0.00 | 1.26 | -17.22 | 75.04 | -24.49 | 134.63 | 0.5585 | 656.0 | 602.2 | |
| 0.00 | 1.67 | 0.00 | 0.98 | -15.06 | 74.99 | -24.54 | 131.57 | 0.5382 | 754.0 | 632.0 | |
| 0.00 | 1.76 | 0.00 | 1.09 | -19.54 | 72.81 | -26.72 | 135.14 | 0.6030 | -824.0 | -675.1 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -21.83 | 72.11 | -27.42 | 137.16 | 0.6310 | 686.0 | 549.8 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -20.49 | 71.33 | -28.20 | 134.80 | 0.6260 | -617.0 | -556.9 | |
| 2.19 | 3.77 | 1.41 | 2.43 | -21.55 | 70.96 | -28.57 | 135.70 | 0.6391 | 642.1 | 405.6 | |
| 0.00 | 1.93 | 0.00 | 1.25 | -21.61 | 70.58 | -28.95 | 135.40 | 0.6431 | 608.0 | 436.4 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -18.92 | 70.88 | -28.65 | 132.41 | 0.6166 | -659.0 | -576.7 | |
| 0.53 | 1.58 | 0.35 | 1.04 | -22.44 | 69.04 | -30.49 | 134.93 | 0.6647 | -804.8 | -671.3 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -21.14 | 69.31 | -30.21 | 133.66 | 0.6511 | -599.0 | -513.0 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -23.37 | 68.43 | -31.10 | 135.43 | 0.6781 | -464.0 | -493.9 | |
| 0.00 | 1.40 | 0.00 | 0.93 | -21.71 | 68.73 | -30.80 | 133.81 | 0.6614 | -550.0 | -493.1 | |
| 3.95 | 5.71 | 2.60 | 3.75 | -21.48 | 68.71 | -30.82 | 133.51 | 0.6597 | -768.8 | -590.9 | |
| 0.00 | 1.58 | 0.00 | 1.05 | -22.03 | 68.58 | -30.95 | 134.04 | 0.6655 | -779.0 | -625.0 | |
| 0.00 | 1.40 | 0.00 | 0.94 | -23.20 | 68.28 | -31.25 | 135.12 | 0.6780 | -665.0 | -614.7 | |
| 0.00 | 1.23 | 0.00 | 0.85 | -25.33 | 67.41 | -32.12 | 136.72 | 0.7033 | -444.0 | -412.5 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -22.11 | 68.25 | -31.27 | 133.85 | 0.6692 | -686.0 | -531.0 | |
| 0.00 | 1.76 | 0.00 | 1.21 | -24.77 | 67.50 | -32.03 | 136.18 | 0.6979 | -653.0 | -521.8 | |
| 0.00 | 1.32 | 0.00 | 0.88 | -21.58 | 67.63 | -31.90 | 132.68 | 0.6708 | -644.0 | -574.7 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -20.12 | 67.79 | -31.74 | 131.08 | 0.6576 | -608.0 | -509.0 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -24.41 | 61.06 | -38.47 | 130.85 | 0.7512 | -494.0 | -392.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
