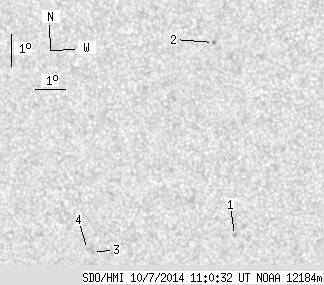

SDO HMI 2014-10-07 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.30 | 0.00 | 2.43 | -8.75 | 75.42 | -24.10 | 121.71 | 0.4778 | -327.8 | -275.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.64 | -10.06 | 77.78 | -21.75 | 127.03 | 0.4588 | 876.0 | 686.6 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -4.13 | 77.40 | -22.12 | 114.88 | 0.4158 | -618.0 | -532.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -10.81 | 72.97 | -26.56 | 122.89 | 0.5251 | -742.0 | -612.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.73 | 72.81 | -26.72 | 122.59 | 0.5264 | -827.0 | -731.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
