SDO HMI 2014-10-07 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.42 | 113.56 | 31.68 | 168.17 | -12.43 | 166.63 | 68.20 | 254.33 | 0.9425 | 250.0 | -12.8 | |
|
previous
or next observation for the same group /

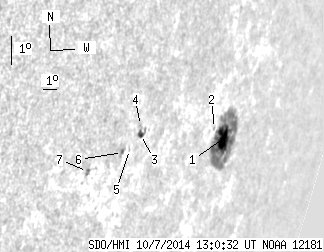

back to the solar disc SDO HMI 2014-10-07 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.96 | 98.12 | 28.85 | 150.36 | -12.49 | 167.34 | 68.91 | 254.43 | 0.9471 | 413.4 | 18.7 | |
| 0.00 | 1.40 | 0.00 | 2.03 | -12.07 | 166.35 | 67.92 | 254.66 | 0.9411 | 597.0 | 487.2 | |
| 2.46 | 5.88 | 2.83 | 6.79 | -11.67 | 160.72 | 62.29 | 253.82 | 0.9046 | -563.8 | -349.5 | |
| 0.00 | 1.23 | 0.00 | 1.41 | -11.38 | 160.61 | 62.18 | 254.11 | 0.9033 | -231.0 | -278.3 | |
| 0.00 | 1.40 | 0.00 | 1.59 | -12.08 | 160.16 | 61.73 | 253.24 | 0.9013 | -247.0 | -159.4 | |
| 0.00 | 2.72 | 0.00 | 3.04 | -12.13 | 159.72 | 61.29 | 253.07 | 0.8982 | -610.0 | -467.6 | |
| 0.00 | 2.81 | 0.00 | 2.95 | -12.52 | 157.69 | 59.26 | 252.11 | 0.8836 | -671.0 | -530.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
